SKU: EXC215-SNR
SNR EXC215 Metric Cast Iron Cartridge Unit with 75mm Bore Insert 44mm Outside Dia - Allow 2-3 Days
SNR EXC215 Metric Cast Iron Cartridge Unit with 75mm Bore Insert 44mm Outside Dia - Allow 2-3 Days
Regular price
$267.77
ex VAT
Regular price
Sale price
$267.77
ex VAT
In stock
Price Break
5+
$265.09
10+
$254.38
20+
$249.03
50+
$240.99
100+
$235.64
500+
$222.25
1000+
$187.44
Description
Description

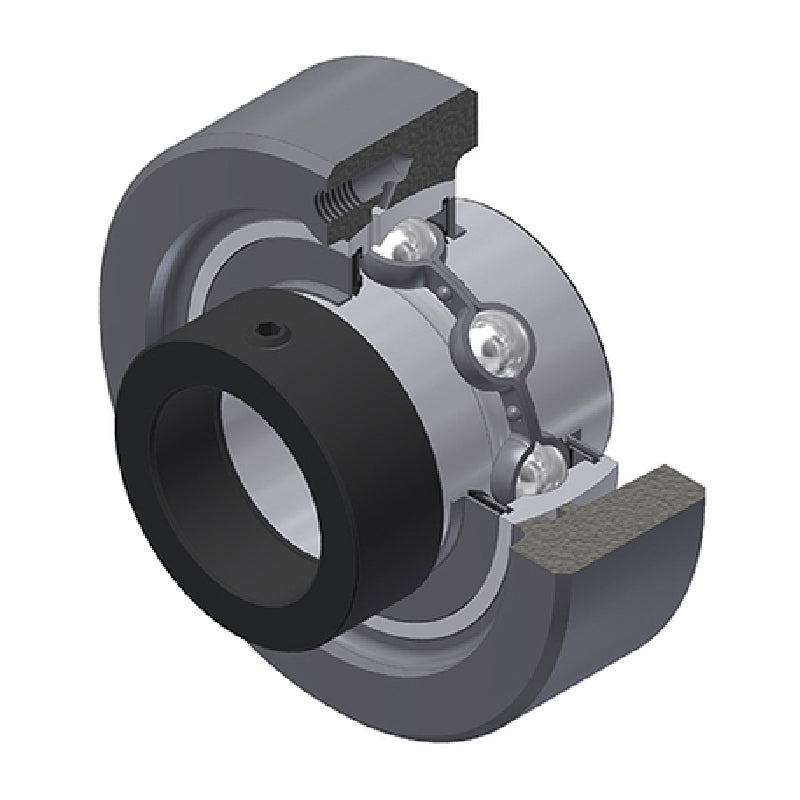

EXC200 Series Cast Iron Cartridge Unit: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 75mm
- Style:
- EXC
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 75mm |
| A | 44mm |
| A3 | 2.5mm |
| B1 | 92.1mm |
| d1 | 102mm |
| H | 160mm |
| S | 37.3mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 66 kN |
| Static load C0 | 49.5 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 4.94 kg |
