SKU: EXC312-SNR
SNR EXC312 Metric Cast Iron Cartridge Unit with 60mm Bore Insert 46mm Outside Dia - Allow 2-3 Days
SNR EXC312 Metric Cast Iron Cartridge Unit with 60mm Bore Insert 46mm Outside Dia - Allow 2-3 Days
Regular price
$267.71
ex VAT
Regular price
Sale price
$267.71
ex VAT
In stock
Price Break
5+
$265.03
10+
$254.32
20+
$248.97
50+
$240.94
100+
$235.58
500+
$222.20
1000+
$187.40
Description
Description

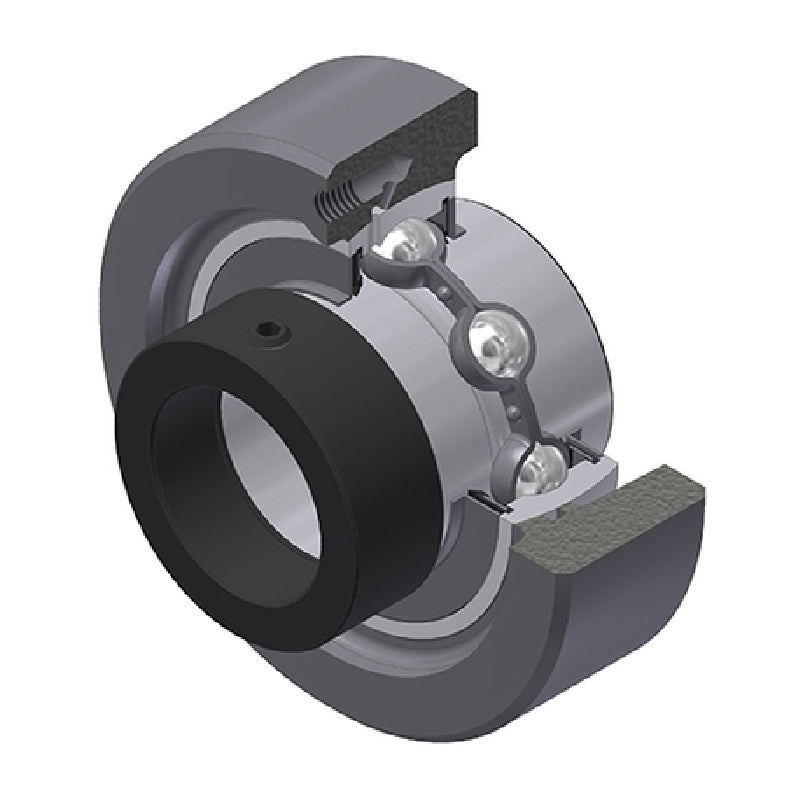

EXC300 Series Cast Iron Cartridge Unit: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 60mm
- Style:
- EXC
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 60mm |
| A | 46mm |
| A3 | 2.5mm |
| B1 | 79.4mm |
| d1 | 89mm |
| H | 160mm |
| S | 30.95mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 81.6 kN |
| Static load C0 | 51.8 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 5.09 kg |
