SNR EXC313 Metric Cast Iron Cartridge Unit with 65mm Bore Insert 50mm Outside Dia - Allow 2-3 Days
SNR EXC313 Metric Cast Iron Cartridge Unit with 65mm Bore Insert 50mm Outside Dia - Allow 2-3 Days
Regular price
$297.56
ex VAT
Regular price
Sale price
$297.56
ex VAT
In stock
Price Break
5+
$294.58
10+
$282.68
20+
$276.73
50+
$267.80
100+
$261.85
500+
$246.97
1000+
$208.29
Description
Description

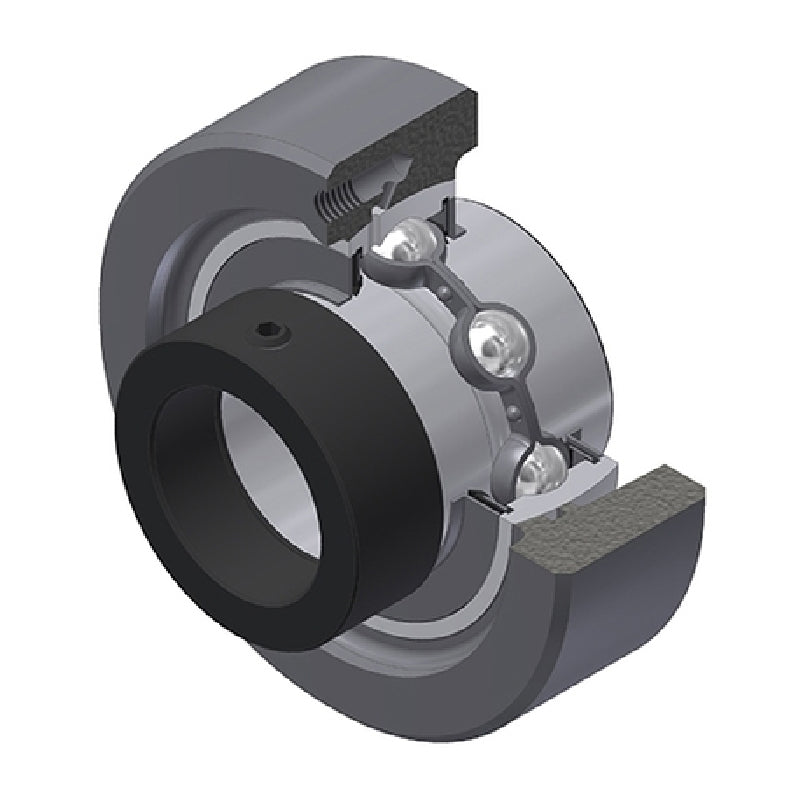

EXC300 Series Cast Iron Cartridge Unit: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 65mm
- Style:
- EXC
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 65mm |
| A | 50mm |
| A3 | 2.5mm |
| B1 | 85.7mm |
| d1 | 97mm |
| H | 170mm |
| S | 32.5mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 93.86 kN |
| Static load C0 | 60.5 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 6.26 kg |
