SKU: EXC319-SNR
SNR EXC319 Metric Cast Iron Cartridge Unit with 95mm Bore Insert 72mm Outside Dia - Allow 2-3 Days
SNR EXC319 Metric Cast Iron Cartridge Unit with 95mm Bore Insert 72mm Outside Dia - Allow 2-3 Days
Regular price
$752.46
ex VAT
Regular price
Sale price
$752.46
ex VAT
In stock
Price Break
2+
$714.84
5+
$677.21
10+
$639.59
15+
$601.97
20+
$586.92
30+
$571.87
50+
$496.62
Description
Description

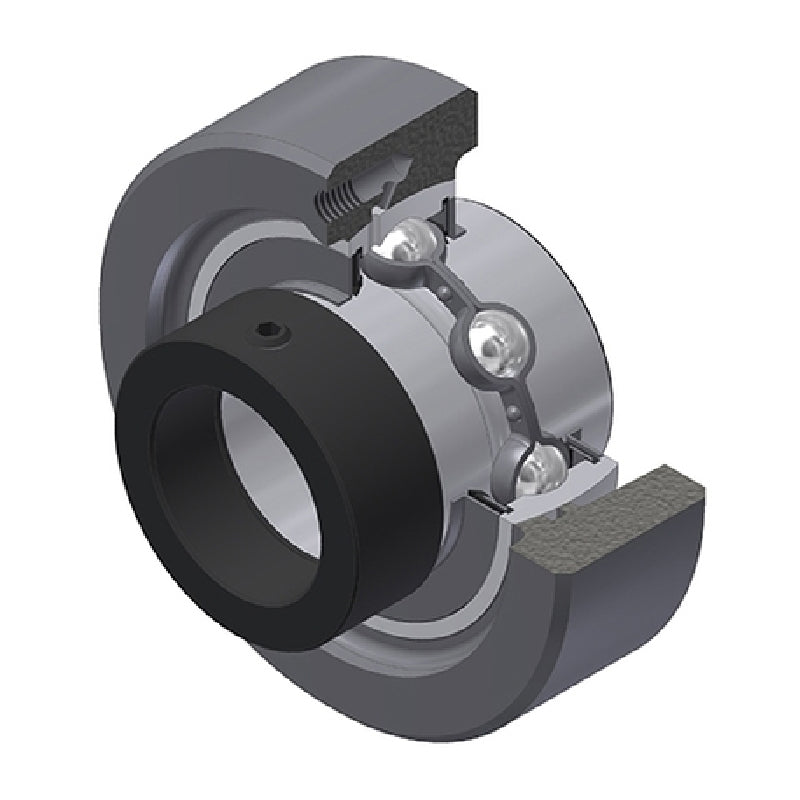

EXC300 Series Cast Iron Cartridge Unit: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 95mm
- Style:
- EXC
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 95mm |
| A | 72mm |
| A3 | 3mm |
| B1 | 122.3mm |
| d1 | 140mm |
| H | 240mm |
| S | 46.8mm |
| G | M10x1 |
| --- | Load rating |
| Dynamic load C | 156 kN |
| Static load C0 | 122 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 17.4 kg |
