SKU: EXFCE216-SNR

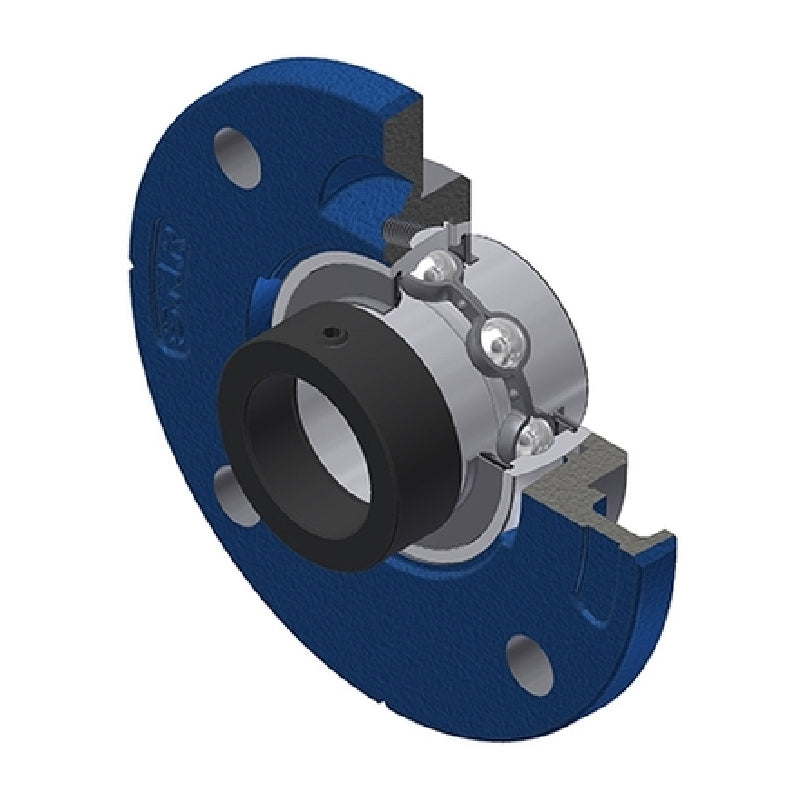

SNR EXFCE216 Metric Four Bolt Cast Iron Round Flanged Housing with 80mm Eccentric Collar Insert - Allow 2-3 Days
SNR EXFCE216 Metric Four Bolt Cast Iron Round Flanged Housing with 80mm Eccentric Collar Insert - Allow 2-3 Days
Regular price
$218.85
ex VAT
Regular price
Sale price
$218.85
ex VAT
In stock
Price Break
10+
$194.78
19+
$183.83
29+
$181.65
39+
$179.46
49+
$177.27
74+
$175.08
99+
$164.14
199+
$161.95
249+
$159.76
499+
$157.57
999+
$153.20
Description
Description
EXFCE200 Series 4 Bolt Cast Iron Round Flanged Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the round cast iron housing and include a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar with a grub screw to facilitate securing the bearing to the shaft after installation. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar/grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 80mm
- Style:
- EXFCE
- Pitch Circle Diameter:
- 184mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 80mm |
| A | 33mm |
| A1 | 18.5mm |
| A2 | 59.9mm |
| A3 | 6mm |
| B | 74.6mm |
| B1 | 95.2mm |
| d1 | 110mm |
| e | 2mm |
| H3 | 160mm |
| J | 184mm |
| L | 220mm |
| N | 18mm |
| S | 37.3mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 72.5 kN |
| Static load C0 | 54.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 33 Nm |
| Mass | 5.91 kg |
