SKU: EXFL216-SNR

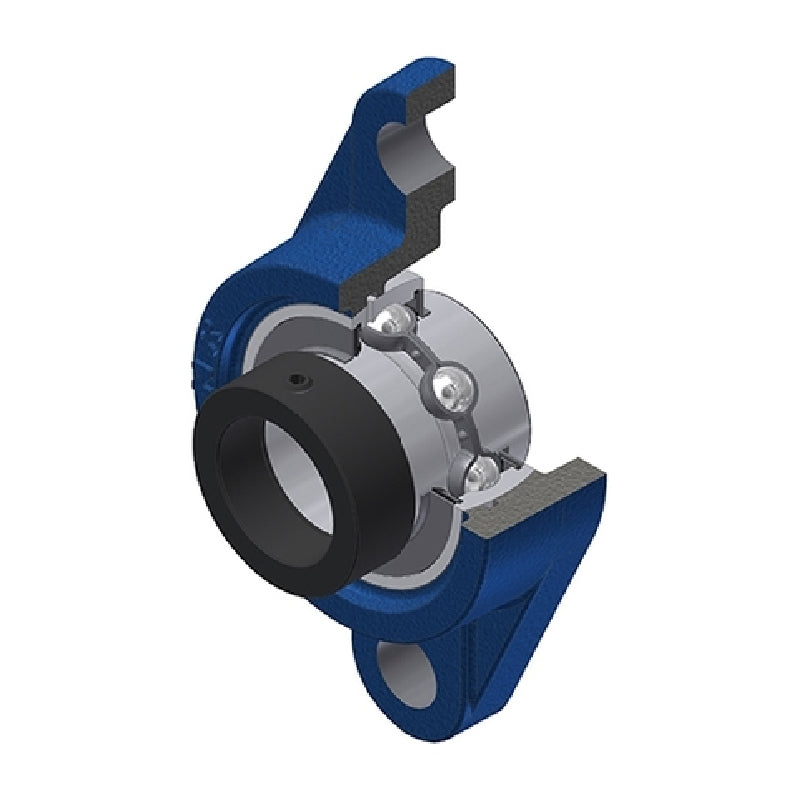

SNR EXFL216 Metric Two Bolt Cast Iron Oval Housing with 80mm Bore Eccentric Collar Insert - Allow 2-3 Days
SNR EXFL216 Metric Two Bolt Cast Iron Oval Housing with 80mm Bore Eccentric Collar Insert - Allow 2-3 Days
Regular price
$297.54
ex VAT
Regular price
Sale price
$297.54
ex VAT
In stock
Price Break
5+
$294.56
10+
$282.66
20+
$276.71
50+
$267.79
100+
$261.84
500+
$246.96
1000+
$208.28
Description
Description
EXFL200 Series 2 Bolt Cast Iron Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 80mm
- Style:
- EXFL
- Bolt Hole Centres:
- 233mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 80mm |
| A | 58mm |
| A1 | 22mm |
| A2 | 91.9mm |
| B | 74.6mm |
| B1 | 95.2mm |
| d1 | 110mm |
| e | 34mm |
| H | 290mm |
| J | 233mm |
| L | 180mm |
| N | 25mm |
| S | 37.3mm |
| G | M10x1 |
| --- | Load rating |
| Dynamic load C | 72.5 kN |
| Static load C0 | 54.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 33 Nm |
| Mass | 7.34 kg |
