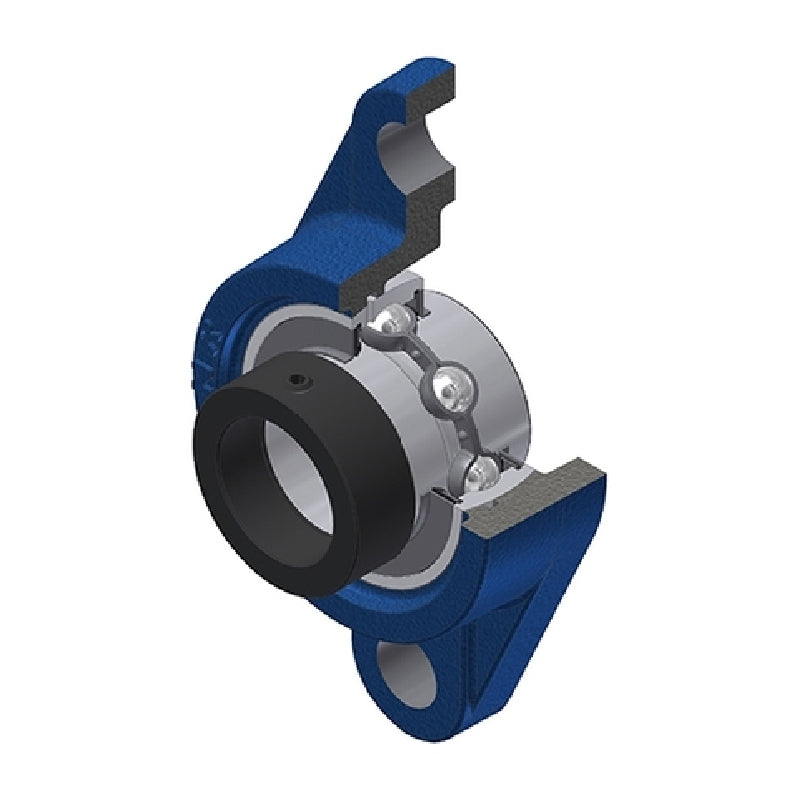

SNR EXFL305 Metric Two Bolt Cast Iron Oval Housing with 25mm Bore Eccentric Collar Insert - Allow 2-3 Days
SNR EXFL305 Metric Two Bolt Cast Iron Oval Housing with 25mm Bore Eccentric Collar Insert - Allow 2-3 Days
Regular price
$74.30
ex VAT
Regular price
Sale price
$74.30
ex VAT
In stock
Price Break
5+
$73.56
10+
$70.59
20+
$69.10
50+
$66.87
100+
$65.38
500+
$61.67
1000+
$52.01
Description
Description
EXFL300 Series 2 Bolt Cast Iron Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 25mm
- Style:
- EXFL
- Bolt Hole Centres:
- 113mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 25mm |
| A | 29mm |
| A1 | 13mm |
| A2 | 46.1mm |
| B | 34.9mm |
| B1 | 46.8mm |
| d1 | 42.8mm |
| e | 16mm |
| H | 150mm |
| J | 113mm |
| L | 80mm |
| N | 19mm |
| S | 16.7mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 22.36 kN |
| Static load C0 | 11.5 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 11.5 Nm |
| Mass | 0.99 kg |
