SKU: EXFS311-SNR

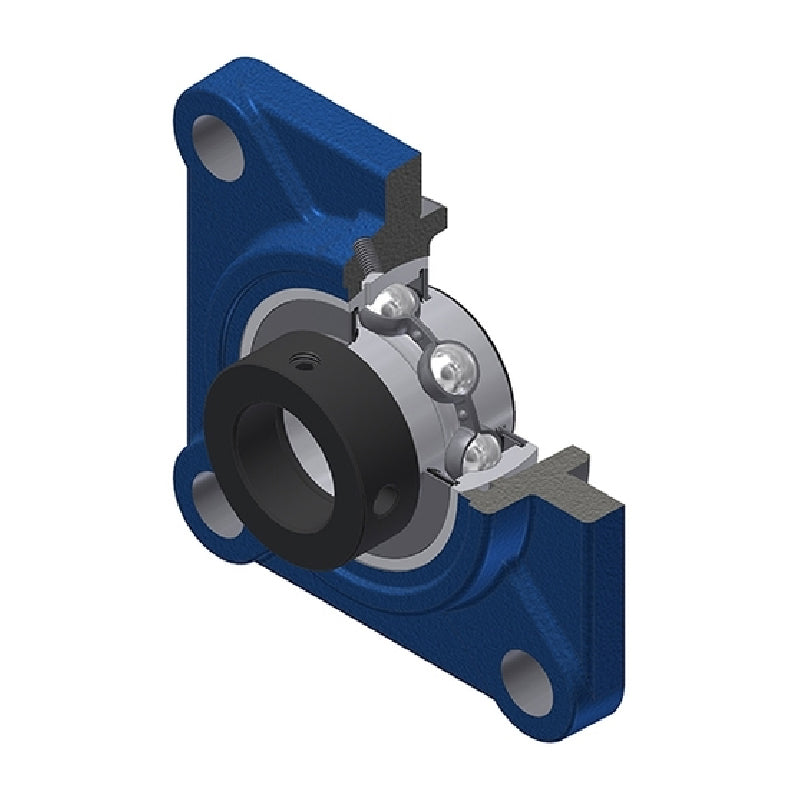

SNR EXFS311 Metric Four Bolt Square Cast Iron Flange Housing with 55mm Bore Eccentric Collar Insert - Allow 2-3 Days
SNR EXFS311 Metric Four Bolt Square Cast Iron Flange Housing with 55mm Bore Eccentric Collar Insert - Allow 2-3 Days
Regular price
$208.30
ex VAT
Regular price
Sale price
$208.30
ex VAT
In stock
Price Break
5+
$206.22
10+
$197.89
20+
$193.72
50+
$187.47
100+
$183.30
500+
$172.89
1000+
$145.81
Description
Description
EXFS300 Series 4 Bolt Cast Iron Square Flange Housing: These cast iron housing units include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 55mm
- Style:
- EXFS
- Bolt Hole Centres:
- 140mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 55mm |
| A | 52mm |
| A1 | 20mm |
| A2 | 62.2mm |
| A4 | 39mm |
| B | 55.6mm |
| B1 | 73mm |
| d1 | 83mm |
| e | 17mm |
| H3 | 150mm |
| J | 140mm |
| L | 185mm |
| N | 23mm |
| S | 27.8mm |
| G | M6x1 |
| --- | Load ratings |
| Dynamic load C | 71.5 kN |
| Static load C0 | 44.8 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 22 Nm |
| Mass | 6.1 kg |
