SKU: EXPE206-SNR

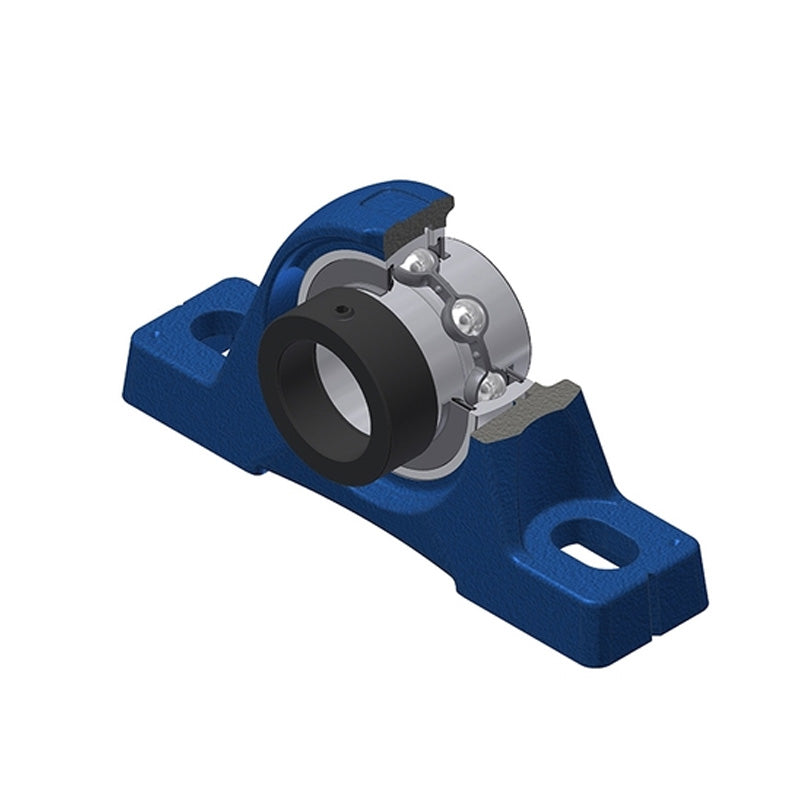

SNR EXPE206 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 30mm Eccentric Collar Insert - Allow 2-3 Days
SNR EXPE206 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 30mm Eccentric Collar Insert - Allow 2-3 Days
Regular price
$40.25
ex VAT
Regular price
Sale price
$40.25
ex VAT
In stock
Price Break
10+
$35.82
19+
$33.81
29+
$33.41
39+
$33.01
49+
$32.60
74+
$32.20
99+
$30.19
199+
$29.79
249+
$29.38
499+
$28.98
999+
$28.18
Description
Description
EXPE200 Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 30mm
- Style:
- EXPE
- Bolt Hole Centres:
- 118mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 30mm |
| A | 40mm |
| A1 | 25mm |
| B | 36.4mm |
| d1 | 44.1mm |
| H | 42.9mm |
| H1 | 17mm |
| H2 | 82mm |
| J | 118mm |
| L | 158mm |
| L1 | 47mm |
| N | 14mm |
| N1 | 22mm |
| S | 18.2mm |
| G | R1/8 |
| --- | Load rating |
| Dynamic load C | 19.5 kN |
| Static load C0 | 11.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 11.5 Nm |
| Mass | 1.21 kg |
