SKU: F9-17G-EU

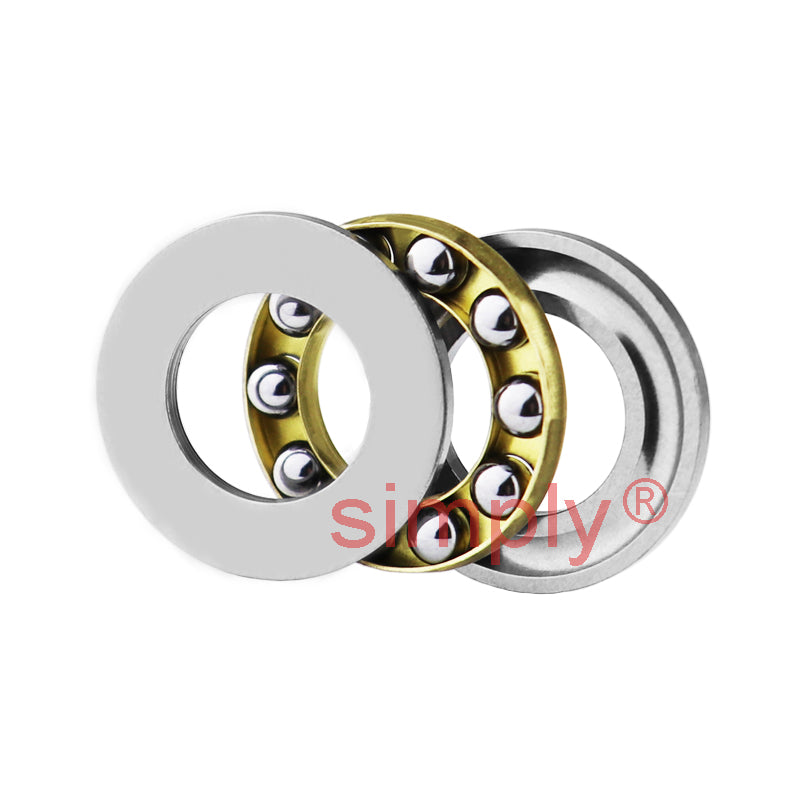

F9-17G Budget Single Thrust Ball Bearing with Grooved Washers 9x17x5mm
F9-17G Budget Single Thrust Ball Bearing with Grooved Washers 9x17x5mm
Regular price
$10.41
ex VAT
Regular price
Sale price
$10.41
ex VAT
In stock
Price Break
10+
$9.26
19+
$8.74
29+
$8.64
39+
$8.54
49+
$8.43
74+
$8.33
99+
$7.81
199+
$7.70
249+
$7.60
499+
$7.50
999+
$7.29
Description
Description
Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have angular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 9mm
- Outside Diameter:
- 17mm
- Width:
- 5mm
Technical
Technical
| d | 9mm (+/-0.008mm) |
|---|---|
| D | 17mm (+0/-0.011mm) |
| H | 5mm (+0/-0.075mm) |
| r1r2 min | 0.3mm |
| Dynamic load C | 0.56 kN |
| Static load Co | 0.49 kN |
| Weight | 0.005 kg |
| Limiting Speed | 22000 rpm |
| Lubrication | Light Oil AF2 |
| Material | Balls & Washers, Chrome Steel, Brass or 304 Stainless Steel Cage |
