SKU: FC20-RHP

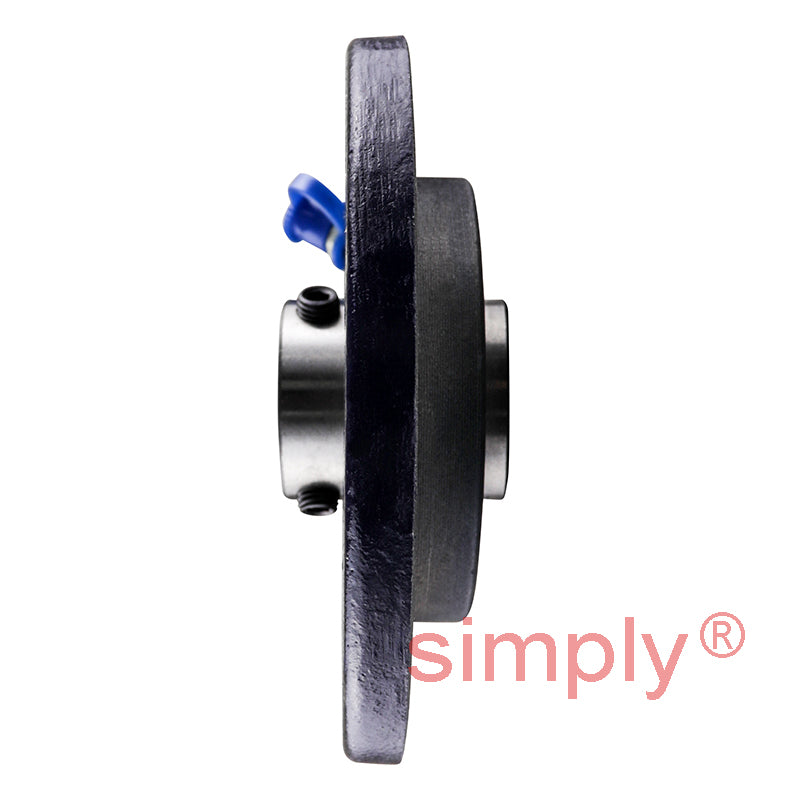

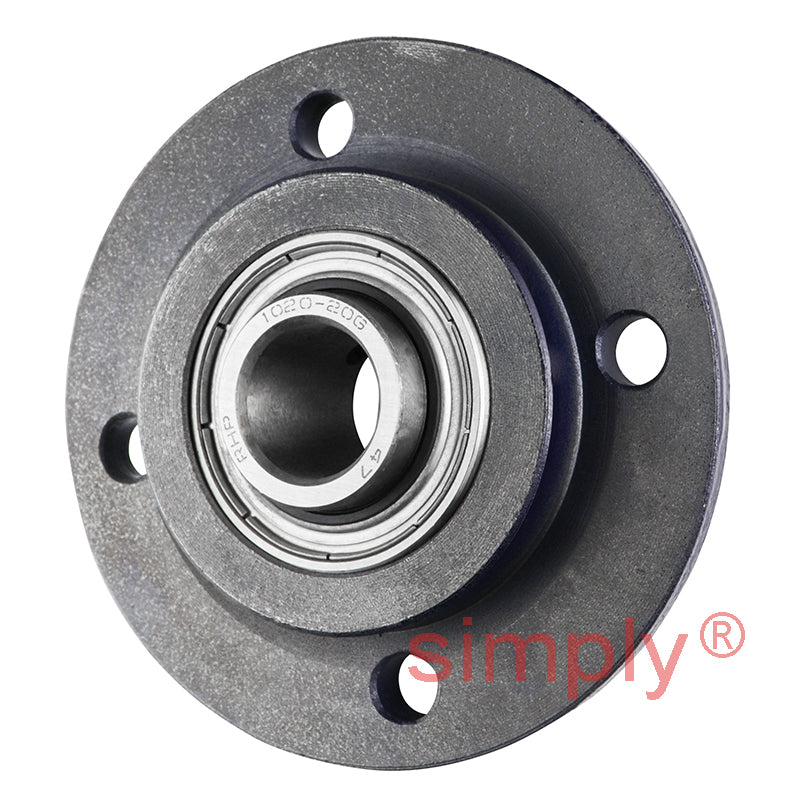

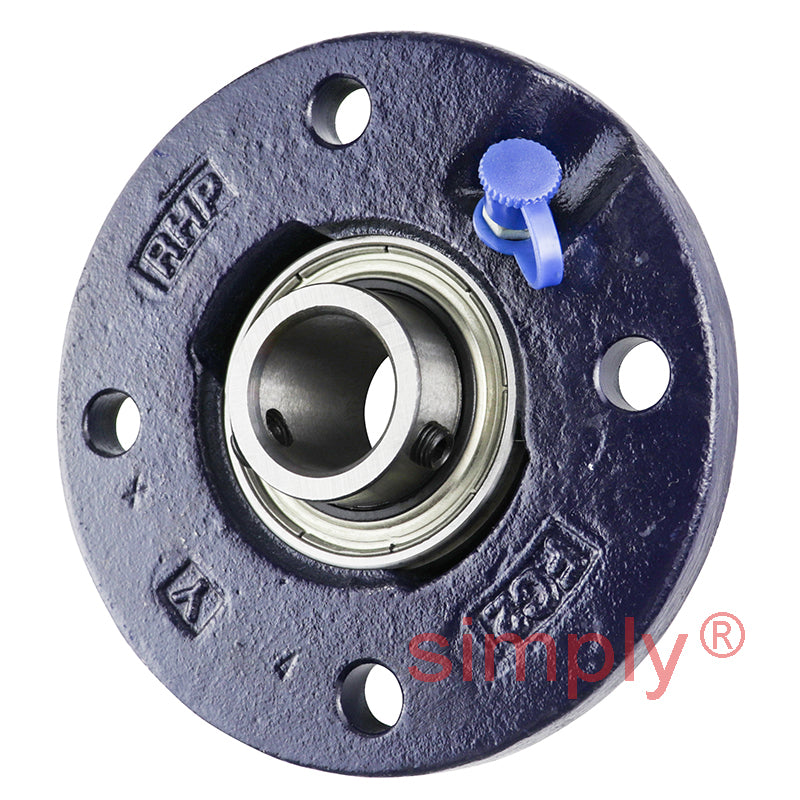

RHP FC20-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 20mm Insert

RHP FC20-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 20mm Insert
$50.87 ex VAT
$50.87 ex VAT
Sale Sold out

In stock

Price Break
10+ $45.27
19+ $42.73
29+ $42.22
39+ $41.71
49+ $41.20
74+ $40.70
99+ $38.15
199+ $37.64
249+ $37.14
499+ $36.63
999+ $35.61
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

RHP FC Series 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width bearing insert
Brand / Quality:
RHP - High Quality
Inside Diameter:
20mm
Style:
FC
Pitch Circle Diameter:
78mm
Technical
Bore 20mm
L 100mm
H 62mm
J 78mm
G 8mm
A 17mm
A1 16.29mm
A5 8mm
B 30.96mm
s 12.75mm
d1 28.5mm
Dynamic load 12800 N
Static load 6650 N
Rec max speed 6700 rpm
Weight 0.7 kg
Insert <a href="advanced_search_result.php?keywords=1020-20G+insonly">1020-20G Click Here</a>
Casting group 2
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
