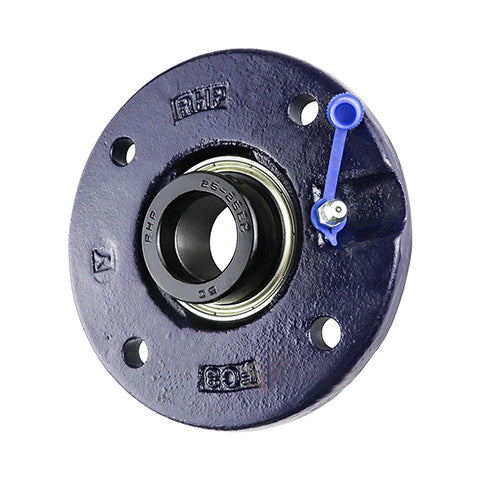

• RHP FC20DEC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 20mm Insert
1 1

SKU: FC20DEC-RHP

RHP FC20DEC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 20mm Insert

RHP FC20DEC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 20mm Insert
$60.45 ex VAT
$60.45 ex VAT
Sale Sold out

In stock

Price Break
10+ $53.80
19+ $50.78
29+ $50.17
39+ $49.57
49+ $48.96
74+ $48.36
99+ $45.34
199+ $44.73
249+ $44.13
499+ $43.52
999+ $42.32
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

RHP FC DEC Series 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, eccentric collar fixing, full width insert

Brand / Quality:
RHP - High Quality
Inside Diameter:
20mm
Style:
FC
Pitch Circle Diameter:
78mm
Technical
Bore 20mm
L 100mm
H 62mm
J 78mm
G 8mm
A 17mm
A3 24.57mm
A5 8mm
B3 43.62mm
s2 17.12mm
d2 33.3mm
Dynamic load 12800 N
Static load 6650 N
Rec max speed 6700 rpm
Weight 0.7 kg
Insert <a href="advanced_search_result.php?keywords=1020-20DECG+insonly">1020-20DECG Click Here</a>
Casting group 2
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
