• RHP FC25DEC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 25mm Insert
1 1

SKU: FC25DEC-RHP

RHP FC25DEC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 25mm Insert

RHP FC25DEC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 25mm Insert
$69.63 ex VAT
$69.63 ex VAT
Sale Sold out

In stock

Price Break
10+ $61.97
19+ $58.49
29+ $57.79
39+ $57.10
49+ $56.40
74+ $55.70
99+ $52.22
199+ $51.53
249+ $50.83
499+ $50.13
999+ $48.74
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

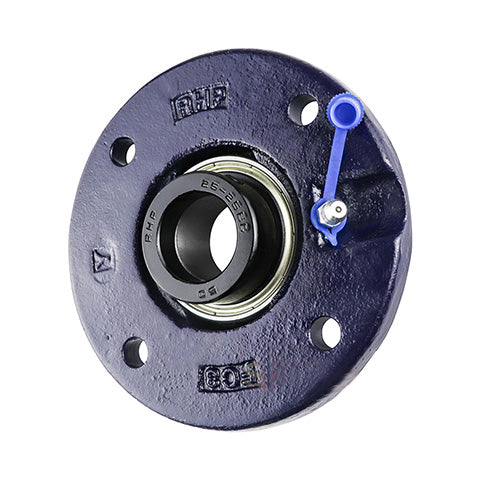

RHP FC DEC Series 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, eccentric collar fixing, full width insert

Brand / Quality:
RHP - High Quality
Inside Diameter:
25mm
Style:
FC
Pitch Circle Diameter:
90mm
Technical
Bore 25mm
L 115mm
H 70mm
J 90mm
G 8mm
A 19mm
A3 24.41mm
A5 9mm
B3 44.4mm
s2 17.49mm
d2 38.1mm
Dynamic load 14000 N
Static load 7880 N
Rec max speed 6250 rpm
Weight 0.9 kg
Insert <a href="advanced_search_result.php?keywords=1025-25DECG+insonly">1025-25DECG Click Here</a>
Casting group 3
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
