SKU: FC25EC-RHP

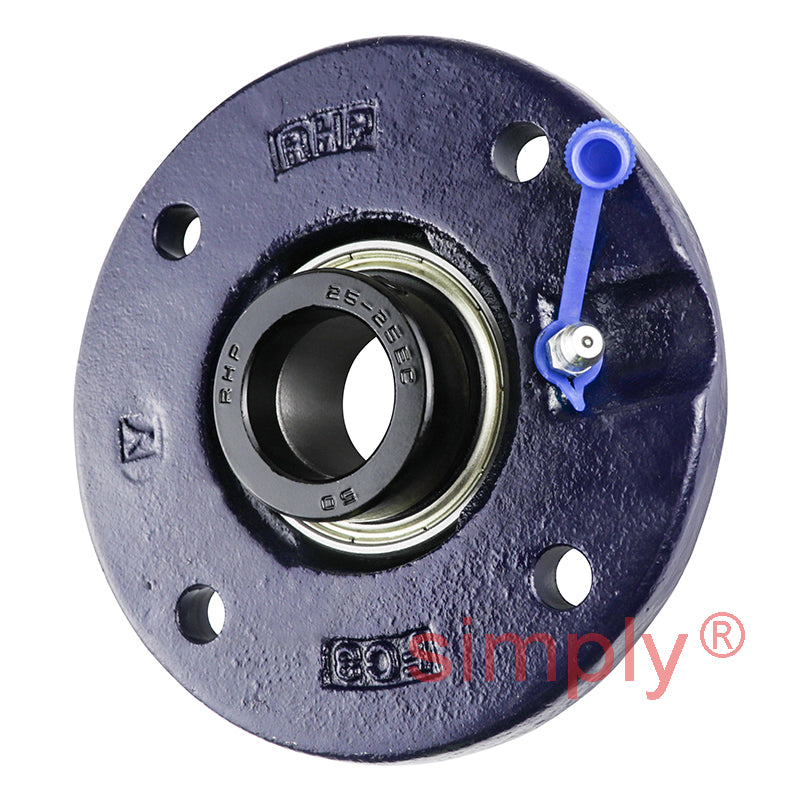

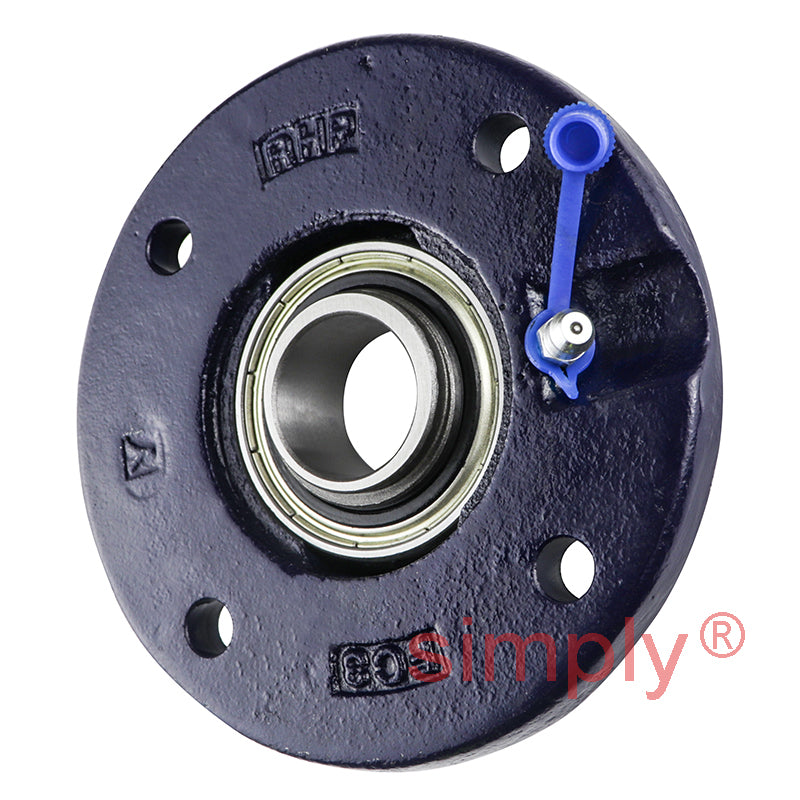

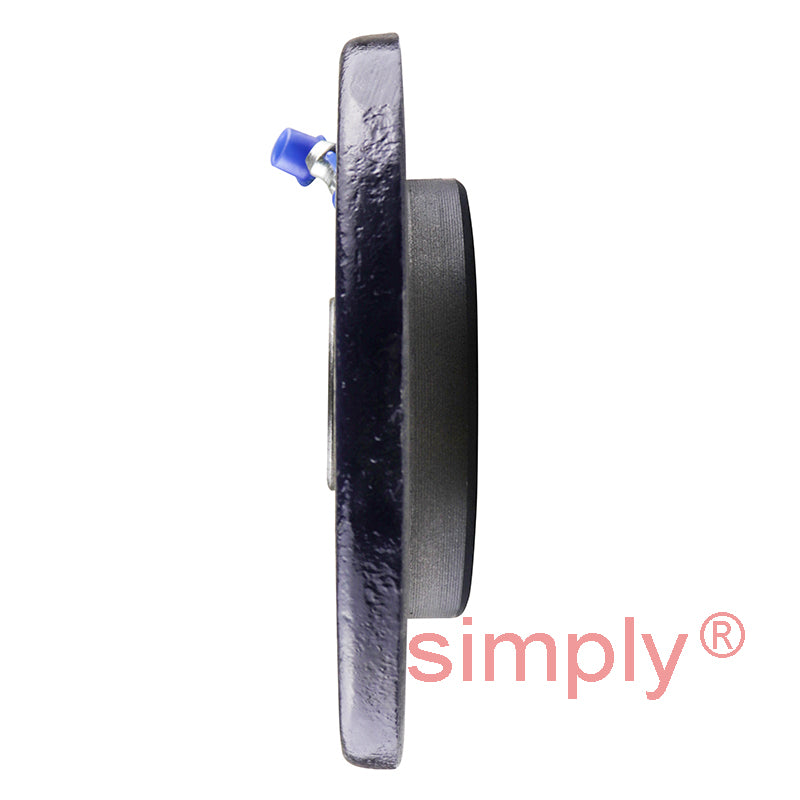

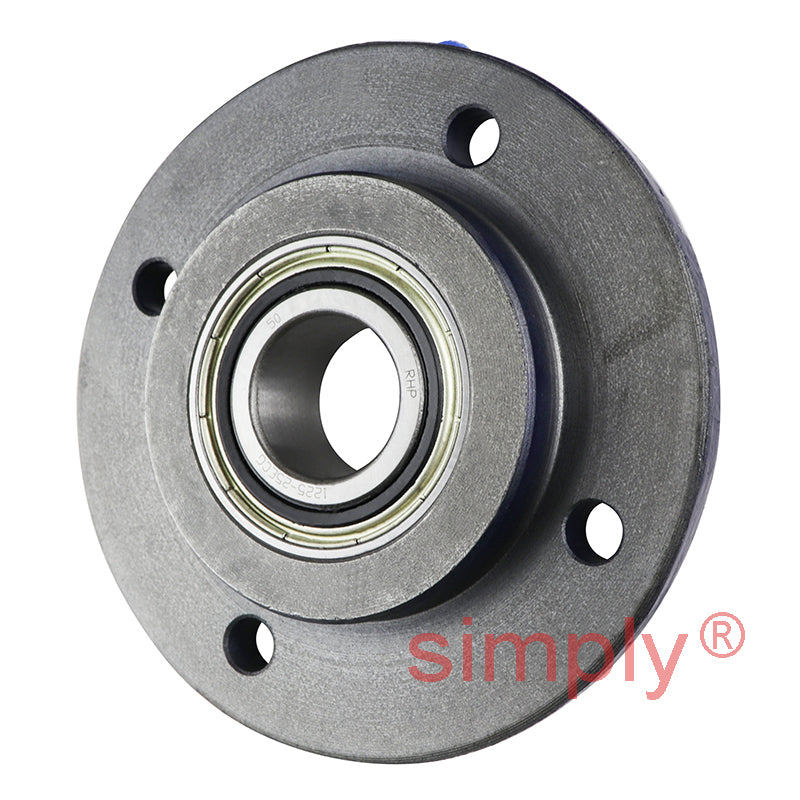

RHP FC25EC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 25mm Insert
RHP FC25EC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 25mm Insert
Regular price
$62.00
ex VAT
Regular price
Sale price
$62.00
ex VAT
In stock
Price Break
10+
$55.18
19+
$52.08
29+
$51.46
39+
$50.84
49+
$50.22
74+
$49.60
99+
$46.50
199+
$45.88
249+
$45.26
499+
$44.64
999+
$43.40
Couldn't load pickup availability
Description
Description
|

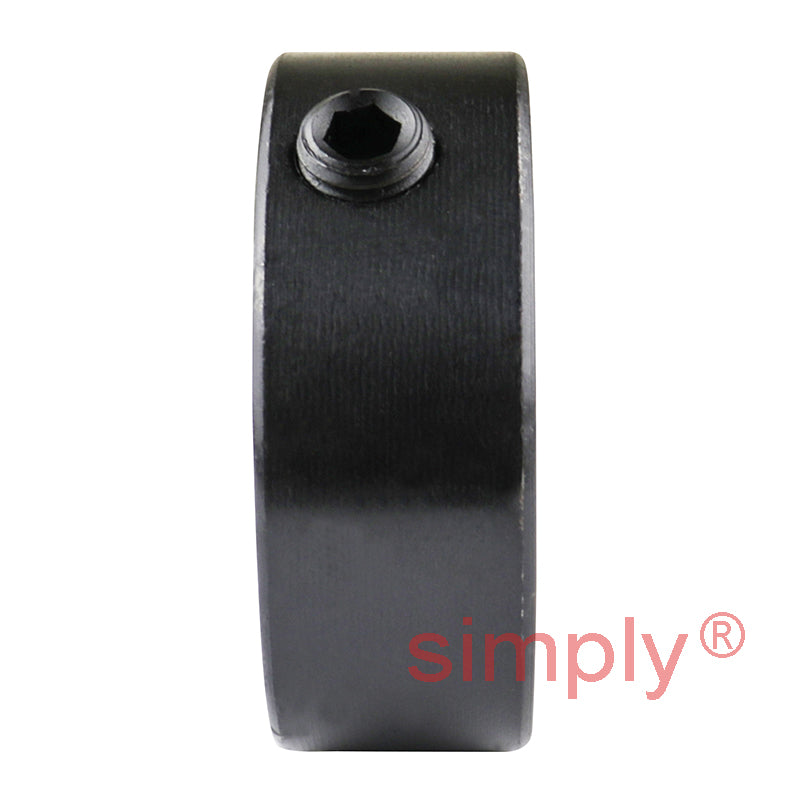

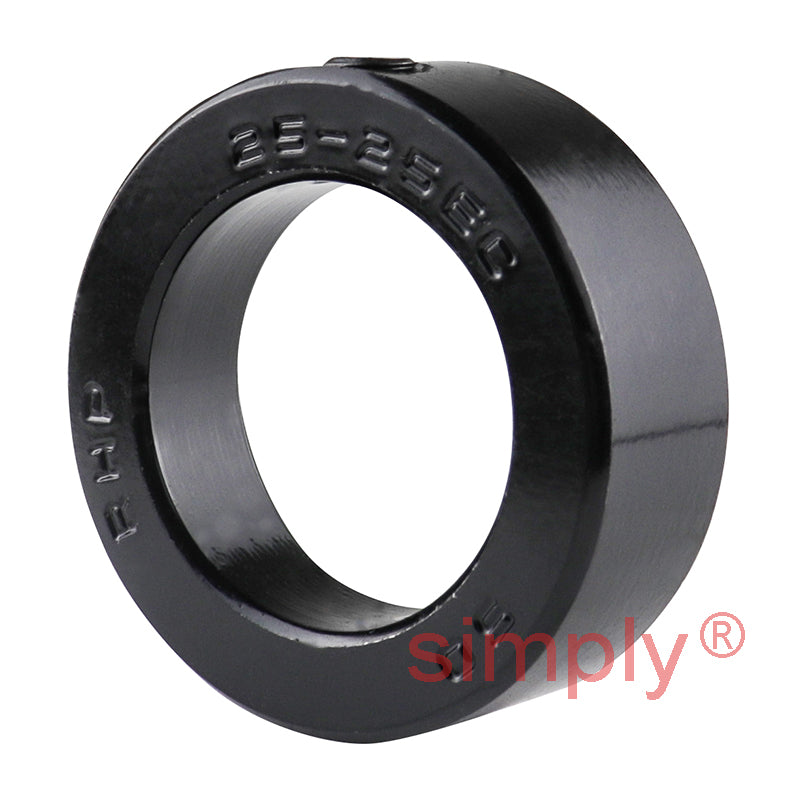

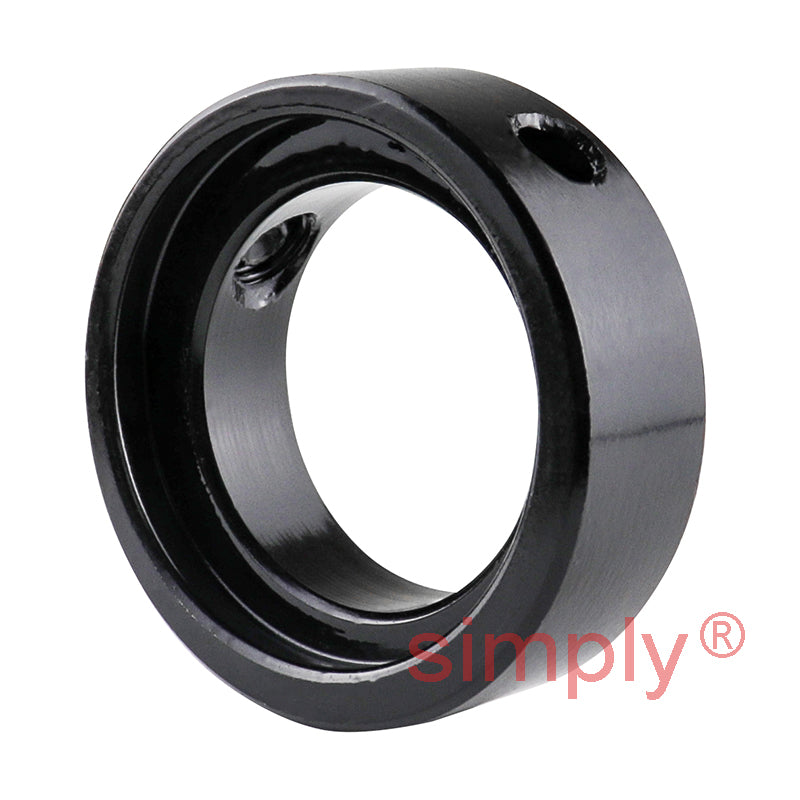

RHP FC EC Series 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 25mm
- Style:
- FC
- Pitch Circle Diameter:
- 90mm
Technical
Technical
| Bore | 25mm |
|---|---|
| L | 115mm |
| H | 70mm |
| J | 90mm |
| G | 8mm |
| A | 19mm |
| A2 | 20.86mm |
| A5 | 9mm |
| B2 | 30.92mm |
| s2 | 17.49mm |
| d2 | 38.1mm |
| Dynamic load | 14000 N |
| Static load | 7880 N |
| Rec max speed | 6250 rpm |
| Weight | 0.9 kg |
| Insert | <a href="advanced_search_result.php?keywords=1225-25ECG+insonly">1225-25ECG Click Here</a> |
| Casting group | 3 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
