SKU: FC35DEC-RHP

RHP FC35DEC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 35mm Insert

RHP FC35DEC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 35mm Insert
$69.59 ex VAT
$69.59 ex VAT
Sale Sold out

In stock

Price Break
10+ $61.94
19+ $58.46
29+ $57.76
39+ $57.06
49+ $56.37
74+ $55.67
99+ $52.19
199+ $51.50
249+ $50.80
499+ $50.10
999+ $48.71
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

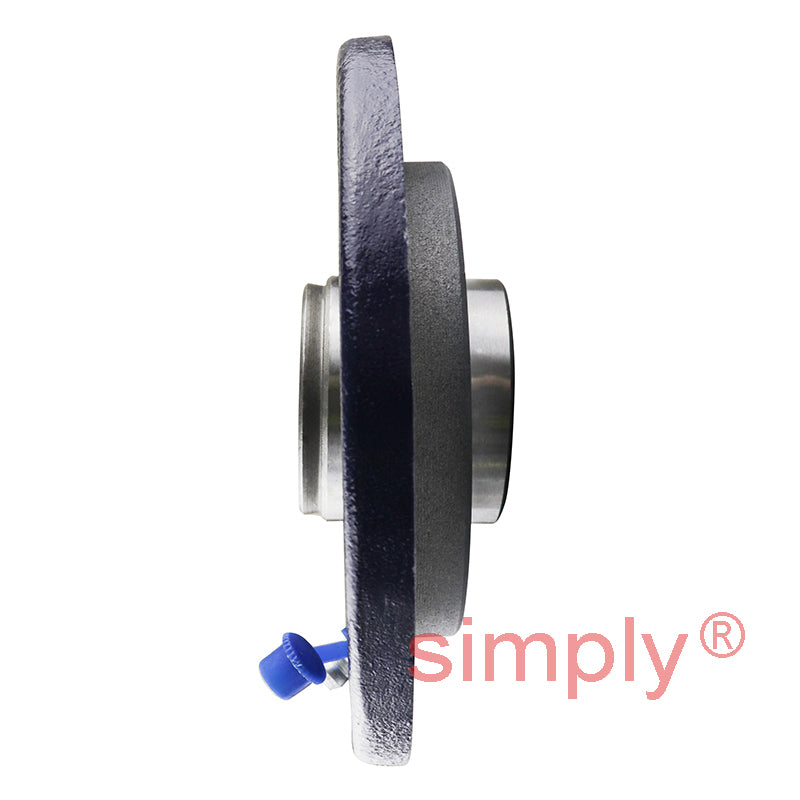

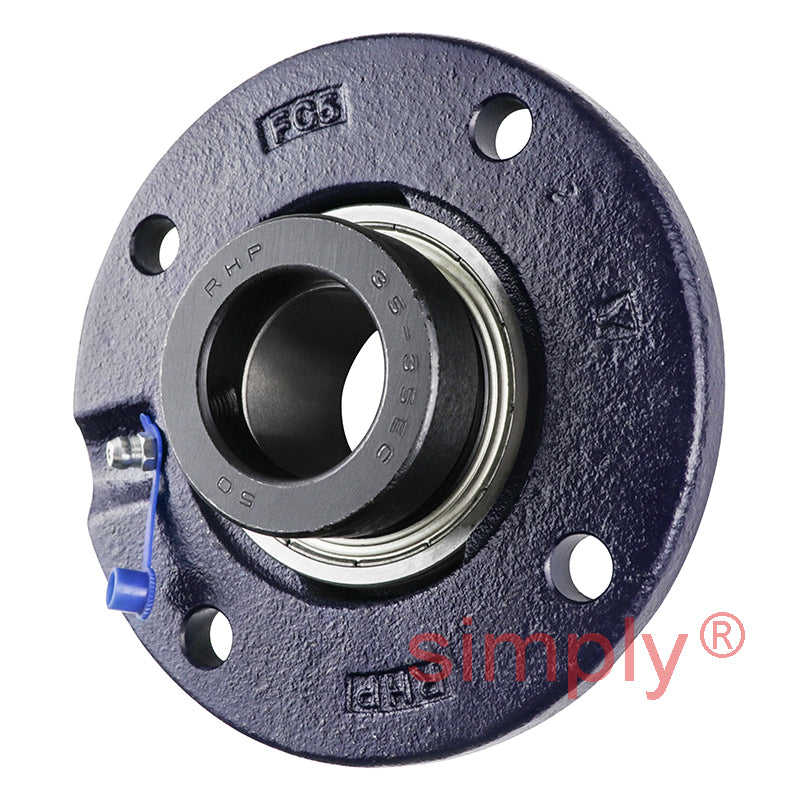

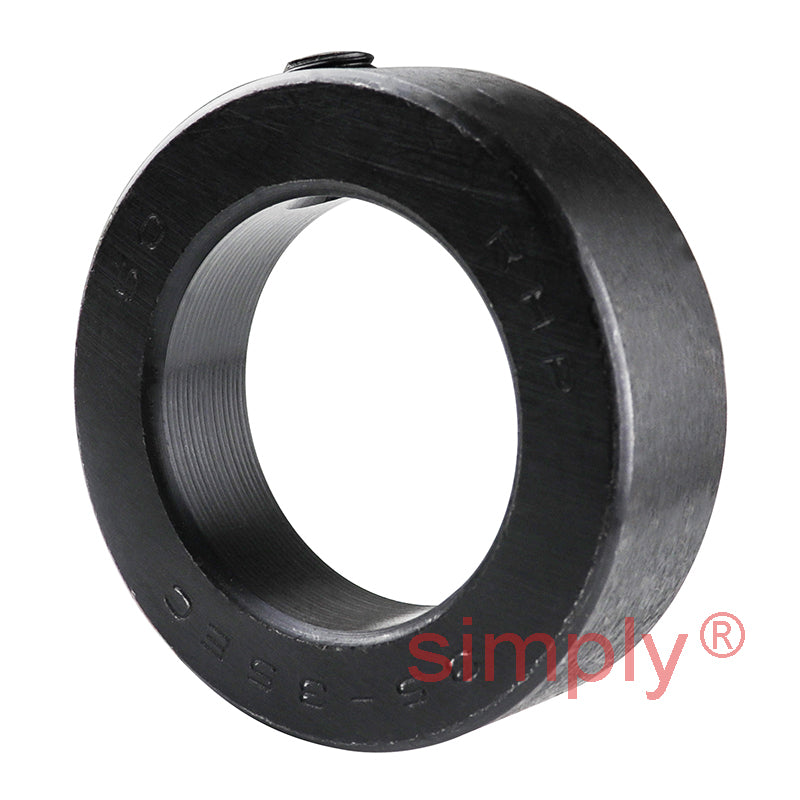

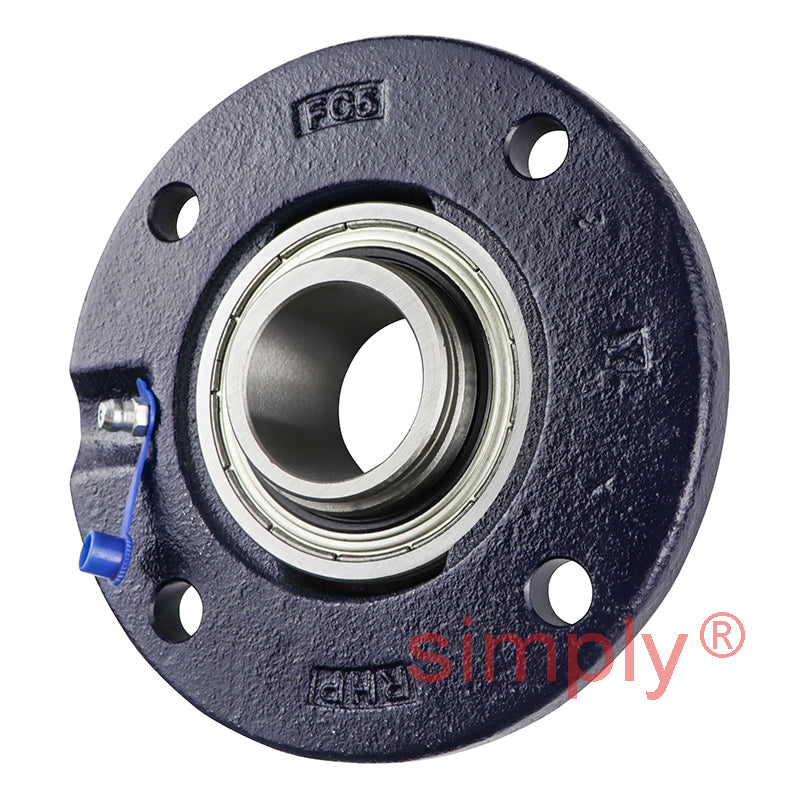

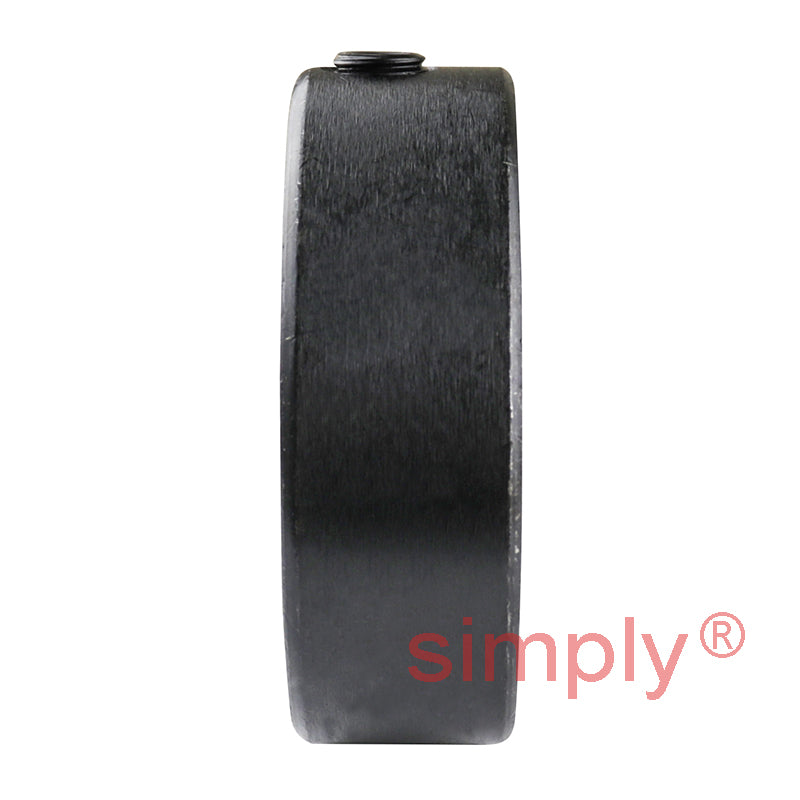

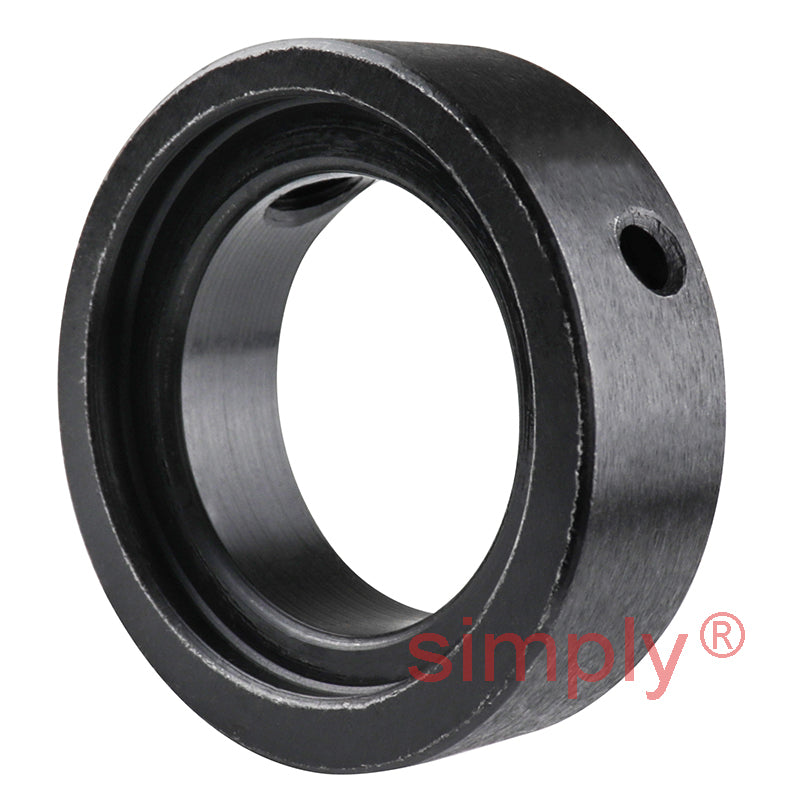

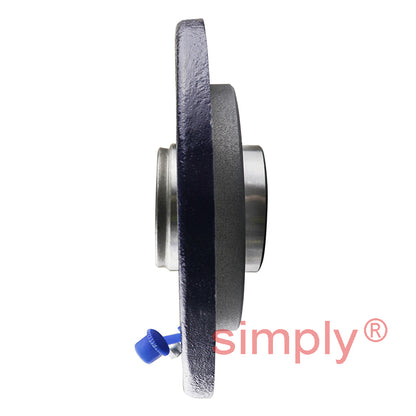

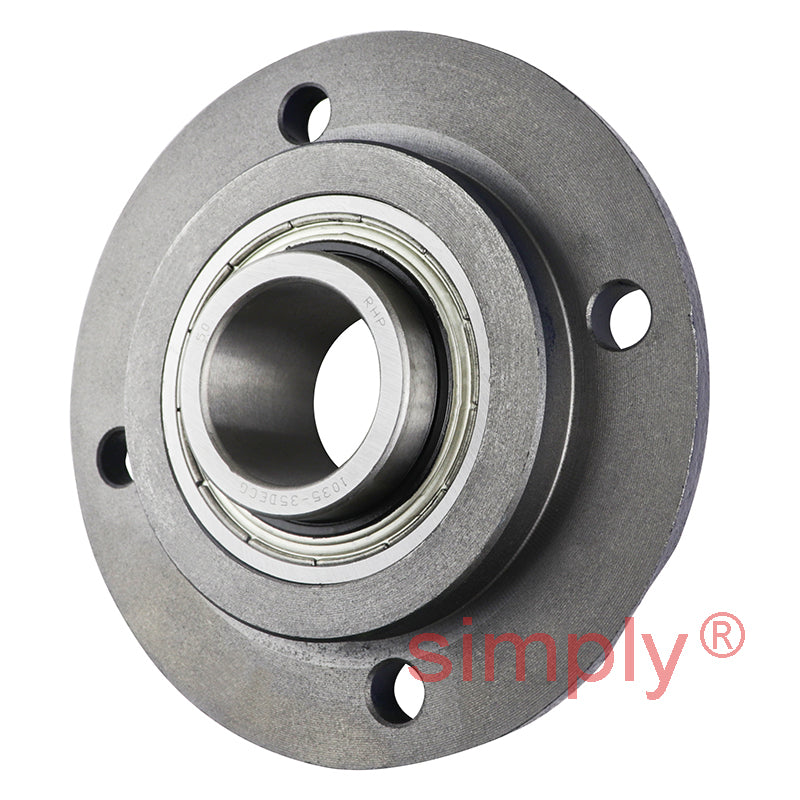

RHP FC DEC Series 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, eccentric collar fixing, full width insert

Brand / Quality:
RHP - High Quality
Inside Diameter:
35mm
Style:
FC
Pitch Circle Diameter:
110mm
Technical
Bore 35mm
L 135mm
H 90mm
J 110mm
G 10mm
A 20.5mm
A3 31.29mm
A5 10mm
B3 51.18mm
s2 18.89mm
d2 55.58mm
Dynamic load 25700 N
Static load 15300 N
Rec max speed 4500 rpm
Weight 1.5 kg
Insert <a href="advanced_search_result.php?keywords=1035-35DECG+insonly">1035-35DECG Click Here</a>
Casting group 5
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
