SKU: FC50A-RHP

RHP FC50A-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 50mm Insert

RHP FC50A-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 50mm Insert
$119.69 ex VAT
$119.69 ex VAT
Sale Sold out

In stock

Price Break
10+ $106.52
19+ $100.54
29+ $99.34
39+ $98.15
49+ $96.95
74+ $95.75
99+ $89.77
199+ $88.57
249+ $87.37
499+ $86.18
999+ $83.78
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

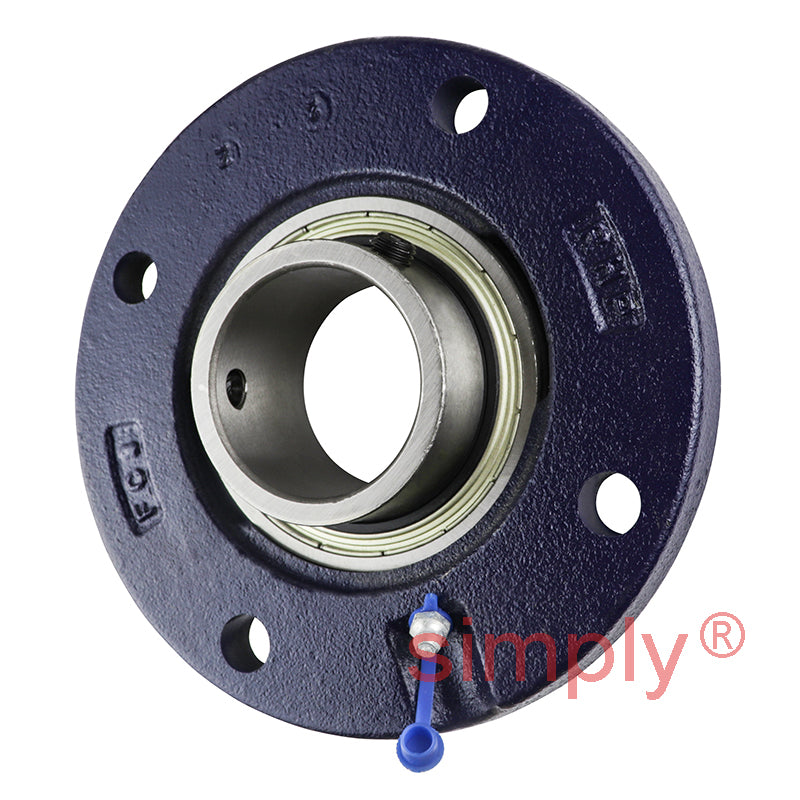

RHP FC A Series 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, flat back insert

Brand / Quality:
RHP - High Quality
Inside Diameter:
50mm
Style:
FC
Pitch Circle Diameter:
135mm
Technical
Bore 50mm
L 165mm
H 110mm
J 135mm
G 12mm
A 25mm
A1 31.52mm
A5 13mm
B1 43.5mm
s1 11.04mm
d1 62.2mm
Dynamic load 35000 N
Static load 23200 N
Rec max speed 3400 rpm
Weight 2.8 kg
Insert <a href="advanced_search_result.php?keywords=1250-50AG+insonly">1250-50AG Click Here</a>
Casting group 8
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
