SKU: FL20-PBC

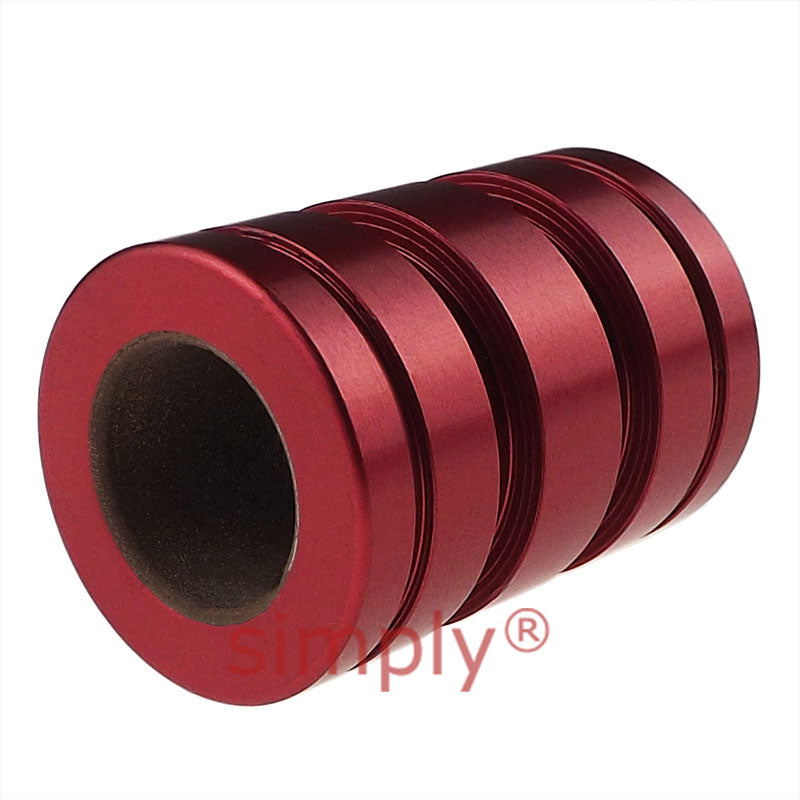

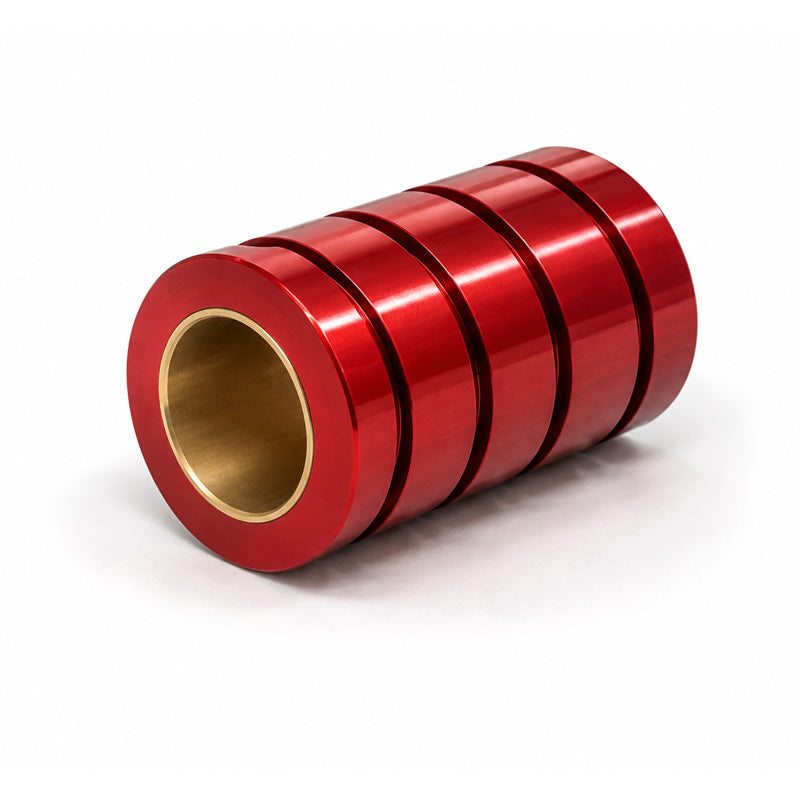

PBC FL 20 Imperial Closed Precision Linear Plain Bearing with Frelon Gold 1.25x2x2.625 inch (Allow 2-3 Days)
PBC FL 20 Imperial Closed Precision Linear Plain Bearing with Frelon Gold 1.25x2x2.625 inch (Allow 2-3 Days)
Regular price
$137.39
ex VAT
Regular price
Sale price
$137.39
ex VAT
In stock
Price Break
10+
$122.28
19+
$115.41
29+
$114.03
39+
$112.66
49+
$111.29
74+
$109.91
99+
$103.04
199+
$101.67
249+
$100.29
499+
$98.92
999+
$96.17
Description
Description
PBC FL Imperial Closed Linear Plain Bearings with Frelon Gold Liner: These compact precision linear bearings are designed to be interchangeable with compact ball bearings and bronze bushings. The Frelon GOLD® has a dark gold high-performance material compatible with RC60 hardened steel shafting, RC70 ceramic coated, and 440 stainless steel shafting.
Benefits: Self-lubricating for oil-free operation, Static Load Capacities up to 446 kN, Wide temperature range from -240 to 204 degree C
- Brand / Quality:
- PBC - High Quality
- Inside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Outside Diameter:
- 50.8mm = 2 inch
- Length:
- 66.68mm = 2.625 (2-5/8) inch
Technical
Technical
| Inside Diameter | 31.75mm = 1.25 (1-1/4) inch |
|---|---|
| Outside Diameter | 50.8mm = 2 inch |
| Width | 66.68mm = 2.625 (2-5/8) inch |
| Nominal Bore Size | 1-1/4 inch |
| Effective Surface Area (Square Inch) | 3.43kg |
| Max Static Load | 48.13kN |
| Weight | 0.208kg |
