SKU: FLN06-PBC

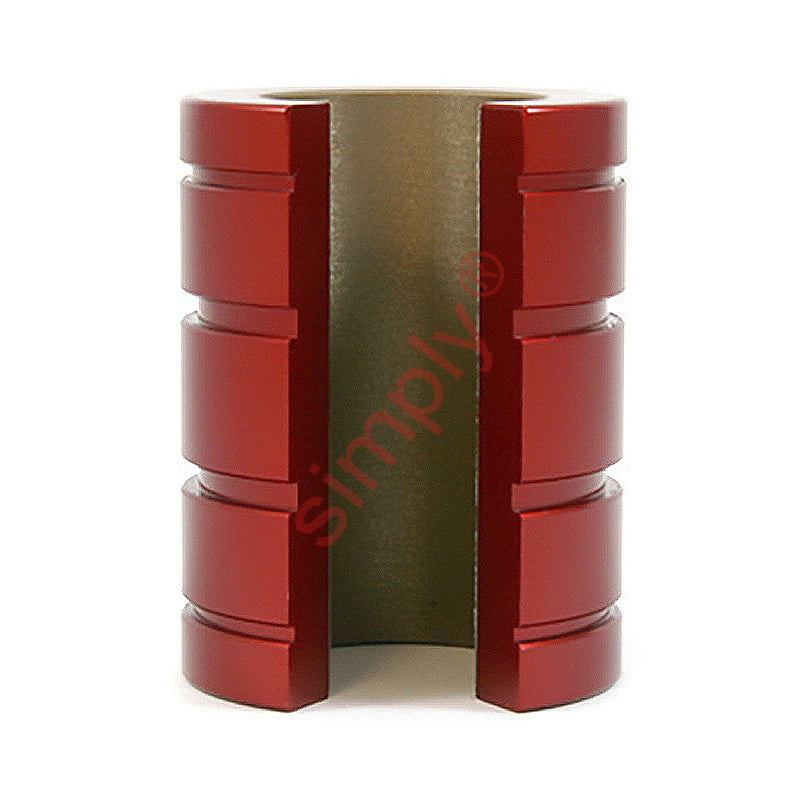

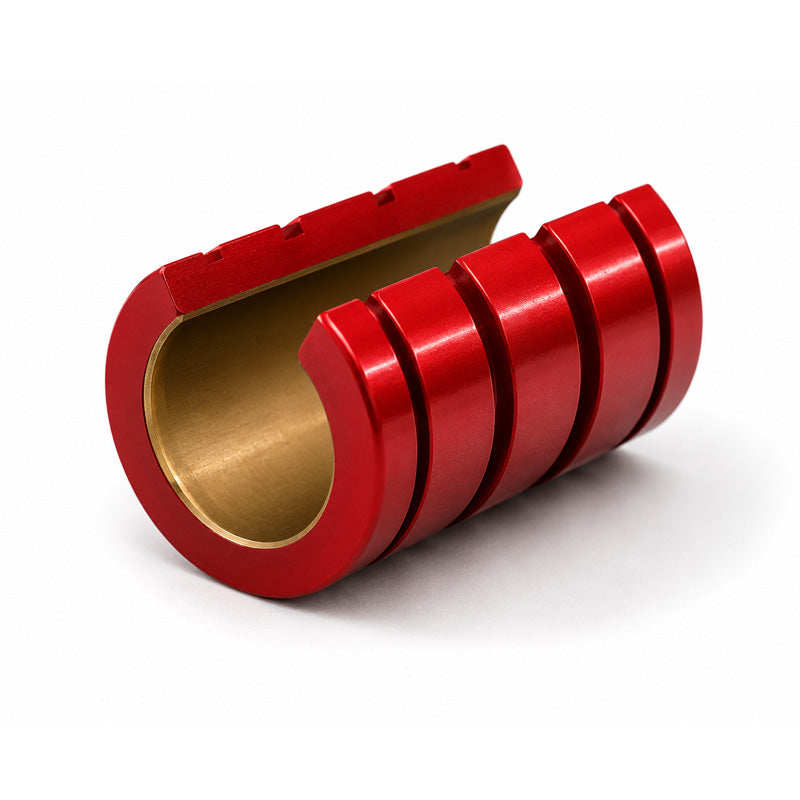

PBC FLN 06 Imperial Open Precision Linear Plain Bearing with Frelon Gold 0.375x0.625x0.875 inch (Allow 2-3 Days)
PBC FLN 06 Imperial Open Precision Linear Plain Bearing with Frelon Gold 0.375x0.625x0.875 inch (Allow 2-3 Days)
Regular price
$56.05
ex VAT
Regular price
Sale price
$56.05
ex VAT
In stock
Price Break
10+
$49.88
19+
$47.08
29+
$46.52
39+
$45.96
49+
$45.40
74+
$44.84
99+
$42.04
199+
$41.48
249+
$40.92
499+
$40.36
999+
$39.24
Description
Description

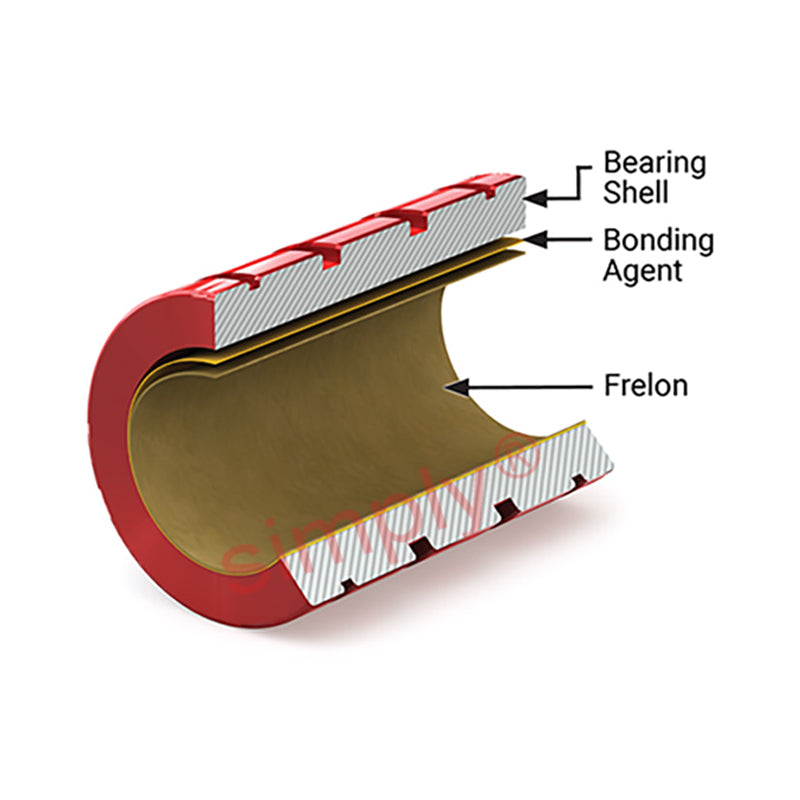

PBC FLN Imperial Open Linear Plain Bearings with Frelon Gold Liner: These compact precision linear bearings are designed to be interchangeable with compact ball bearings and bronze bushings. The Frelon GOLD® has a dark gold high-performance material compatible with RC60 hardened steel shafting, RC70 ceramic coated, and 440 stainless steel shafting.
Benefits: Self-lubricating for oil-free operation, Static Load Capacities up to 446 kN, Wide temperature range from -240 to 204 degree C
- Brand / Quality:
- PBC - High Quality
- Inside Diameter:
- 9.53mm = 0.375 (3/8) inch
- Outside Diameter:
- 15.88mm = 0.625 (5/8) inch
- Length:
- 22.23mm = 0.875 (7/8) inch
Technical
Technical

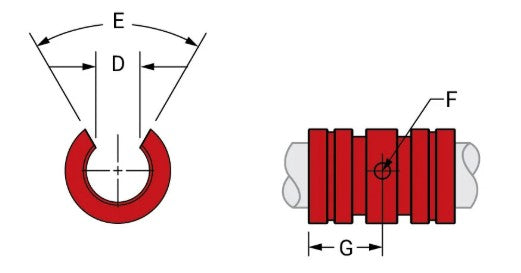

| Inside Diameter (A) | 9.53mm = 0.375 (3/8) inch |
|---|---|
| Outside Diameter (B) | 15.88mm = 0.625 (5/8) inch |
| Width (C) | 22.23mm = 0.875 (7/8) inch |
| Nominal Bore Size | 3/8 inch |
| Effective Surface Area (Square Inch) | 0.34 inch |
| Max Static Load | 4.53kN |
| Weight | 0.007kg |
