SKU: FLN08-PBC

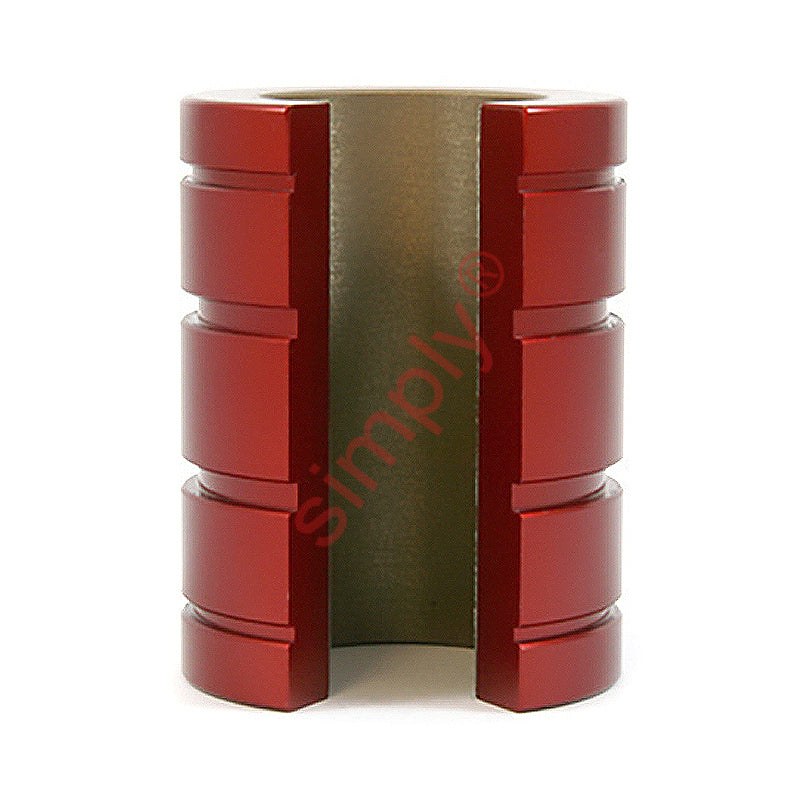

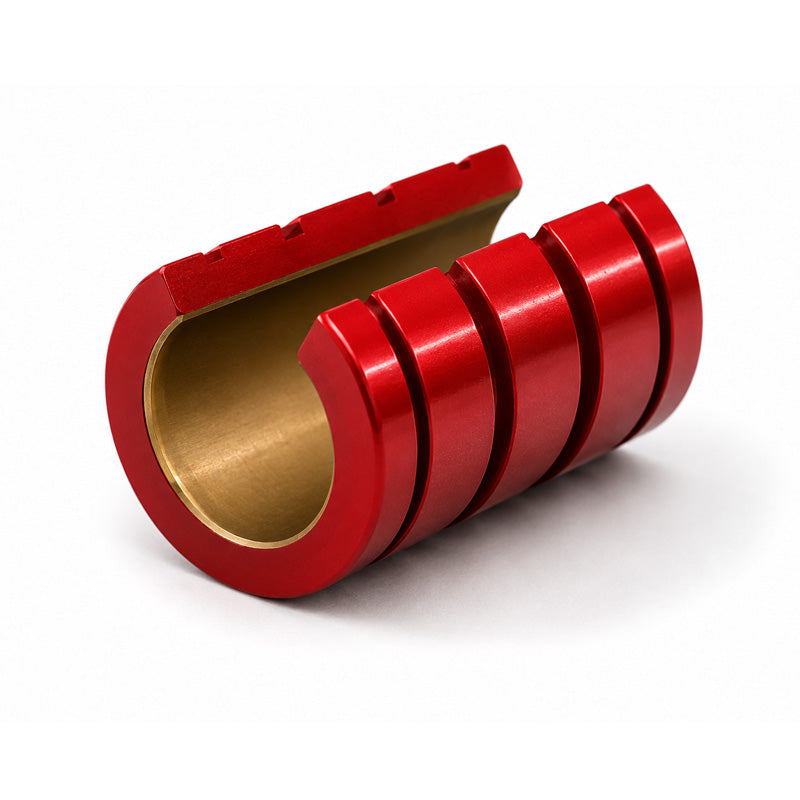

PBC FLN 08 Imperial Open Precision Linear Plain Bearing with Frelon Gold 0.5x0.875x1.25 inch (Allow 2-3 Days)
PBC FLN 08 Imperial Open Precision Linear Plain Bearing with Frelon Gold 0.5x0.875x1.25 inch (Allow 2-3 Days)
Regular price
$64.27
ex VAT
Regular price
Sale price
$64.27
ex VAT
In stock
Price Break
10+
$57.20
19+
$53.99
29+
$53.34
39+
$52.70
49+
$52.06
74+
$51.42
99+
$48.20
199+
$47.56
249+
$46.92
499+
$46.27
999+
$44.99
Description
Description

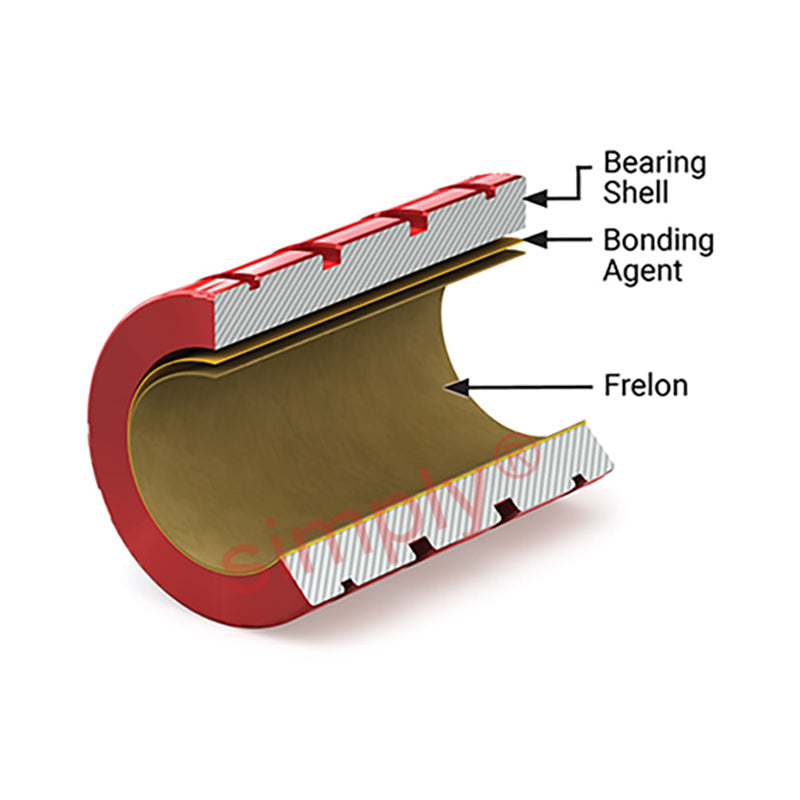

PBC FLN Imperial Open Linear Plain Bearings with Frelon Gold Liner: These compact precision linear bearings are designed to be interchangeable with compact ball bearings and bronze bushings. The Frelon GOLD® has a dark gold high-performance material compatible with RC60 hardened steel shafting, RC70 ceramic coated, and 440 stainless steel shafting.
Benefits: Self-lubricating for oil-free operation, Static Load Capacities up to 446 kN, Wide temperature range from -240 to 204 degree C
- Brand / Quality:
- PBC - High Quality
- Inside Diameter:
- 12.7mm = 0.5 (1/2) inch
- Outside Diameter:
- 22.23mm = 0.875 (7/8) inch
- Length:
- 31.75mm = 1.25 (1-1/4) inch
Technical
Technical

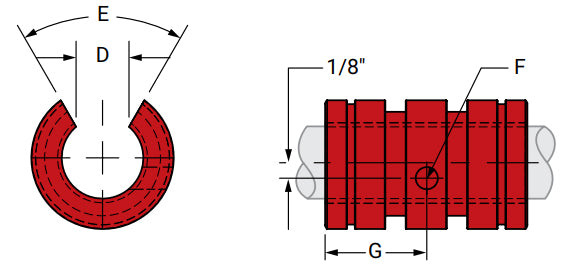

| Inside Diameter (A) | 12.7mm = 0.5 (1/2) inch |
|---|---|
| Outside Diameter (B) | 22.23mm = 0.875 (7/8) inch |
| Width (C) | 31.75mm = 1.25 (1-1/4) inch |
| Nominal Bore Size | 1/2 inch |
| Effective Surface Area (Square Inch) | 0.65 inch |
| Max Static Load | 8.67kN |
| Weight | 0.019kg |
