SKU: FY35WF-SKF
SKF FY35WF Square Cast Housing with Eccentric Locking Collar 35mm Insert
SKF FY35WF Square Cast Housing with Eccentric Locking Collar 35mm Insert
Regular price
$98.63
ex VAT
Regular price
Sale price
$98.63
ex VAT
In stock
Price Break
10+
$87.78
19+
$82.85
29+
$81.86
39+
$80.88
49+
$79.89
74+
$78.90
99+
$73.97
199+
$72.99
249+
$72.00
499+
$71.01
999+
$69.04
Description
Description
|
SKF Square Flanged Y-bearing Units with Cast Housing and Locking Collar: These units have a square flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 35mm
- Style:
- FY
- Bolt Hole Centres:
- 92mm

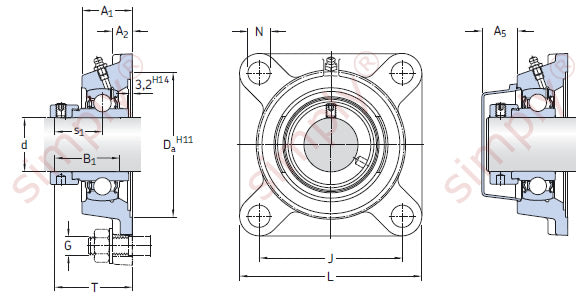

Technical
Technical
| d | 35mm |
|---|---|
| A1 | 34.5mm |
| A2 | 13mm |
| B1 | 51.1mm |
| Da | 106.4mm |
| J | 92mm |
| L | 118mm |
| N | 14mm |
| G | 12mm |
| s1 | 32.3mm |
| T | 53.3mm |
| Static load Cr | 15.3 kN |
| Dynamic load Cor | 25.5 kN |
| Fatigue load limit Pu | 0.655 kN |
| Limiting speed | 5300 rpm |
| A5 | 22mm |
| Weight | 1.55 kg |
| Compatible end cover closed | ECY207 |
