SKU: FY40TF/VA228-SKF

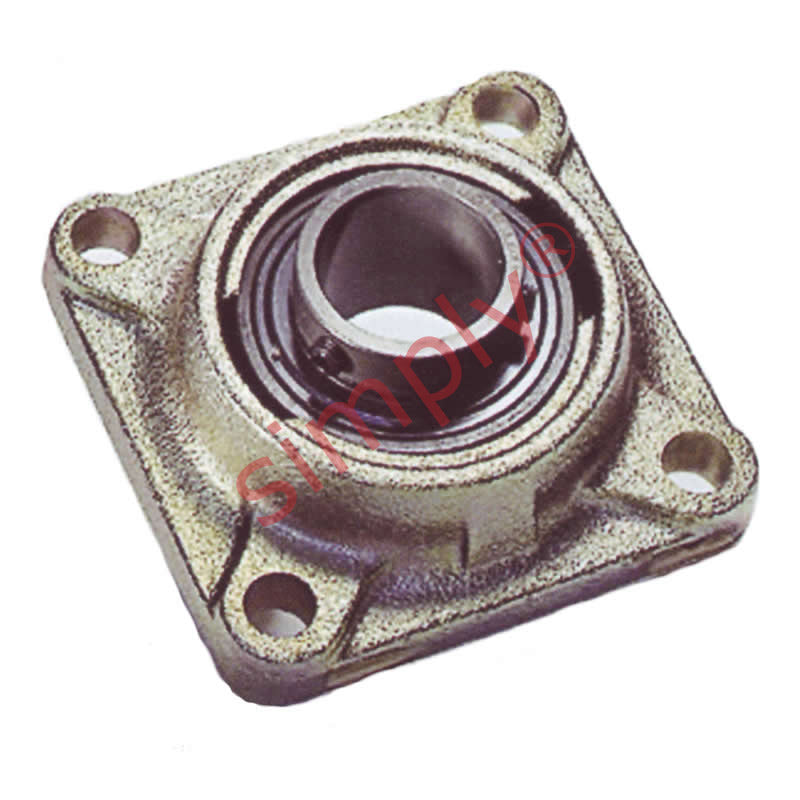

SKF FY40TFVA228 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Graphite Cage Insert for Metric Shaft 40mm
SKF FY40TFVA228 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Graphite Cage Insert for Metric Shaft 40mm
Regular price
$368.88
ex VAT
Regular price
Sale price
$368.88
ex VAT
In stock
Price Break
10+
$328.30
19+
$309.86
29+
$306.17
39+
$302.48
49+
$298.79
74+
$295.10
99+
$276.66
199+
$272.97
249+
$269.28
499+
$265.59
999+
$258.22
Description
Description
|
SKF High Temperature Housings and Bearing Inserts: VA228 have a grey cast iron housing and have a coronet type graphite cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -50 deg to +350 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts. They have a max rotational speed of 100 rpm Benefits:High temp tolerance from -50 to +350 deg Celsius |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 40mm
- Temperature Range:
- High Temp
Technical
Technical
| d | 40mm |
|---|---|
| A1 | 38.5mm |
| A2 | 14mm |
| B | 49.2mm |
| J | 101.5mm |
| L | 130mm |
| N | 14.3mm |
| G | 12mm |
| T | 54.2mm |
| Dynamic load C | 30.7 kN |
| Static load Co | 19 kN |
| Weight | 1.9 kg |
