SKU: FYC35TF-SKF

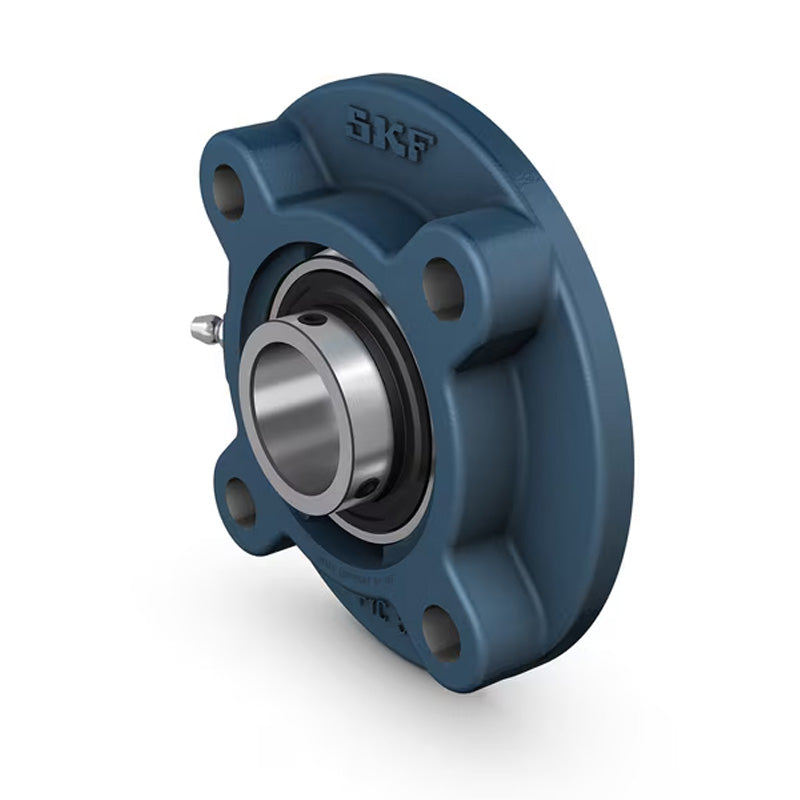

SKF FYC35TF Round Cast Housing with Grub Screw 35mm Insert
SKF FYC35TF Round Cast Housing with Grub Screw 35mm Insert
Regular price
$99.13
ex VAT
Regular price
Sale price
$99.13
ex VAT
In stock
Price Break
10+
$88.23
19+
$83.27
29+
$82.28
39+
$81.29
49+
$80.30
74+
$79.30
99+
$74.35
199+
$73.36
249+
$72.36
499+
$71.37
999+
$69.39
Description
Description
|
SKF Round Flanged Y-bearing Units with Cast Housing: These units have a round flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 35mm
- Style:
- FYC
- Pitch Circle Diameter:
- 110mm

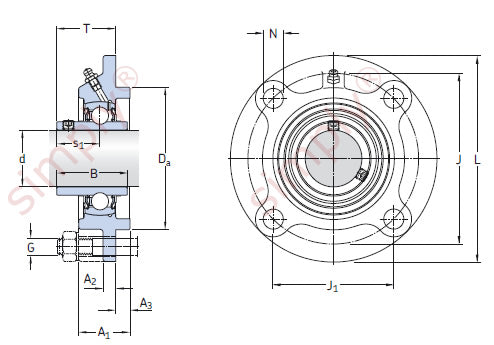

Technical
Technical
| d | 35mm |
|---|---|
| A1 | 34mm |
| A2 | 9mm |
| A3 | 8mm |
| B | 42.9mm |
| Da h8 | 90mm |
| J | 110mm |
| J1 | 77.8mm |
| L | 135mm |
| N | 14mm |
| G | 12mm |
| s1 | 25.4mm |
| T | 36.4mm |
| Static load Cr | 15.3 kN |
| Dynamic load Cor | 25.5 kN |
| Fatigue load limit Pu | 0.655 kN |
| Limiting speed | 5300 rpm |
| Weight | 1.55 kg |
