SKU: GE14PW.INA

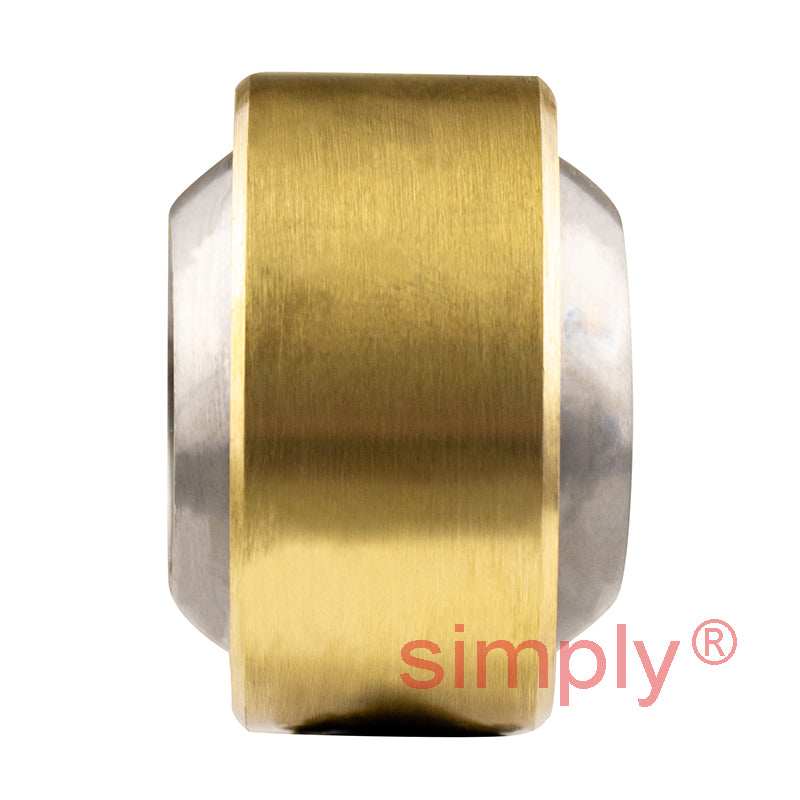

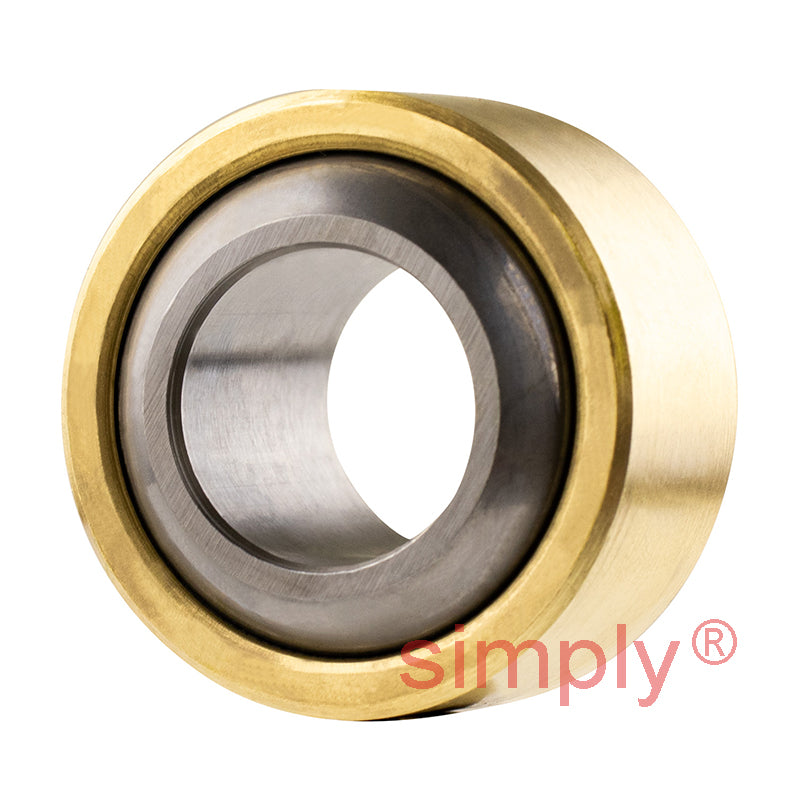

INA GE14PW Steel / PTFE Spherical Plain Bearing 14x28x19x13.5mm
INA GE14PW Steel / PTFE Spherical Plain Bearing 14x28x19x13.5mm
Regular price
$51.77
ex VAT
Regular price
Sale price
$51.77
ex VAT
Equivalent to: GE14-PW
In stock
Price Break
10+
$46.08
19+
$43.49
29+
$42.97
39+
$42.45
49+
$41.93
74+
$41.42
99+
$38.83
199+
$38.31
249+
$37.79
499+
$37.27
999+
$36.24
Description
Description
INA GE..-PW Series Spherical Plain Bearings: This series is classed as maintenance free radial spherical plain bearings. Comprising of sliding contact surfaces of steel against PTFE these spherical plain bearings are unsealed and are maintenance-free.
Equivalent: GE14-PW
Equivalent: GE14-PW
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 14mm
- Outside Diameter:
- 28mm
- Width:
- 19mm
Technical
Technical
| d | 14mm (Bore tolerance: H7 (arithmetic mean value)) |
|---|---|
| D | 28mm (Tolerance: 0/-0.009) |
| B | 19mm (Tolerance: 0/-0.12) |
| Radial internal clearance | 0.006-0.035mm |
| C | 13.5mm (Tolerance: 0/-0.24) |
| Da min | 22.5mm |
| da max | 16.8mm |
| dk | 25.4mm |
| Chamfer dimension r1s min | 0.3mm |
| Chamfer dimension r2s min | 0.3mm |
| a | 16° |
| Mass | 0.054 kg |
| Basic dynamic load, radial Cr | 31000 N |
| Basic static load, radial Cor | 77500 N |
