INA GE40XLKLLB Metric Spherical Outer Bearing Insert with L Seals and Eccentric Collar 40x80x56.5mm
INA GE40XLKLLB Metric Spherical Outer Bearing Insert with L Seals and Eccentric Collar 40x80x56.5mm
Regular price
$74.56
ex VAT
Regular price
Sale price
$74.56
ex VAT
In stock
Price Break
10+
$66.36
19+
$62.63
29+
$61.88
39+
$61.14
49+
$60.39
74+
$59.65
99+
$55.92
199+
$55.17
249+
$54.43
499+
$53.68
999+
$52.19
Description
Description
|

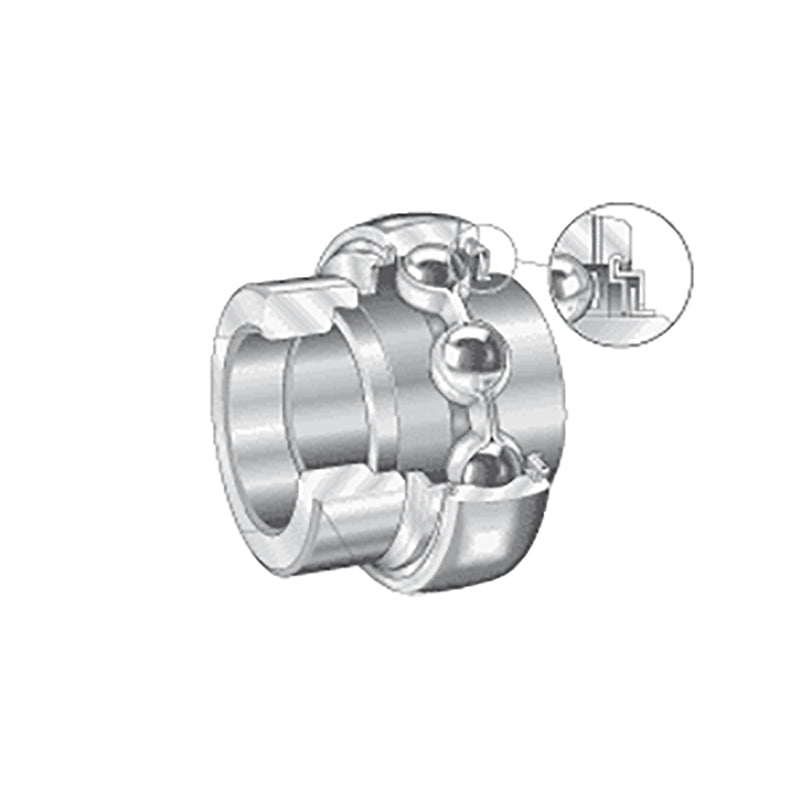

INA GE..KLL-B Series Inserts: Bearing insert with spherical outer race, L seals and eccentric locking collar. These radial insert ball bearings are located on the shaft by means of a locking collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. The outer ring has two lubrication holes as standard. Operating temperature range: -40 deg C to +180 deg C. Benefits: Can be re-lubricated, compensation of misalignment, wide temperature range. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 80mm
- Width:
- 56.5mm
Technical
Technical
| d | 40mm |
|---|---|
| Dsp | 80mm |
| B1 | 56.5mm |
| B | 42.9mm |
| C | 21mm |
| C2 | 28.1mm |
| Ca | 6.4mm |
| D1 | 68.3mm |
| d1 | 52.3mm |
| d3 max | 58mm |
| S | 21.4mm |
| W | 5mm |
| Dynamic load Cr | 32500 N |
| Static load C0r | 19800 N |
| Weight | 0.75 kg |
