SKU: GLE45-KRR-B-INA

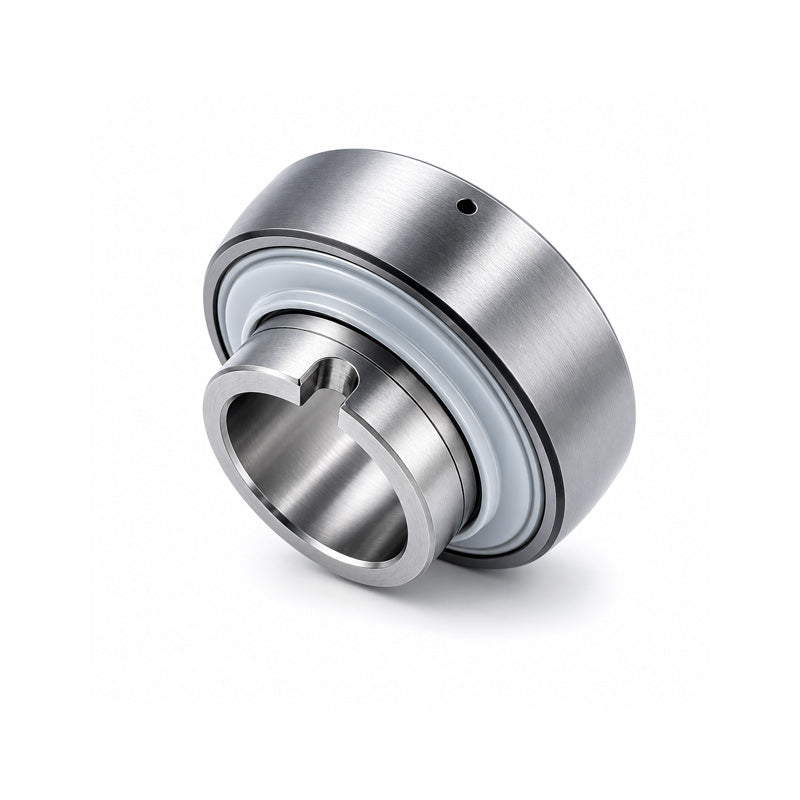

INA GLE45XLKRRB Metric Spherical Outer Bearing Insert with R Seals and Drive Slot in Inner Ring 45x85x42.9mm
INA GLE45XLKRRB Metric Spherical Outer Bearing Insert with R Seals and Drive Slot in Inner Ring 45x85x42.9mm
Regular price
$91.99
ex VAT
Regular price
Sale price
$91.99
ex VAT
In stock
Price Break
10+
$81.87
19+
$77.27
29+
$76.35
39+
$75.43
49+
$74.51
74+
$73.59
99+
$68.99
199+
$68.07
249+
$67.15
499+
$66.23
999+
$64.39
Description
Description
|
INA GLE..KRR-B Series Inserts: Bearing insert with spherical outer race, R seals with PTFE seal lips and a drive slot in the inner ring. These non-locating bearings are to be used at low speeds and loads to compensate for thermal elongation of the shaft. Due to the slot, they are easy to locate in a radial direction. Rotation is prevented by a drive pin on the shaft or a set collar with a pin. These bearings are suitable for drawn shafts up to grade h7. The outer ring has two lubrication holes as standard. Inner rings up to a bore diameter of 60mm have a Corrotect® coating and are thus protected against fretting corrosion. Operating temperature range: -40 deg C to +180 deg C. Benefits: Can be re-lubricated, compensation of misalignment, wide temperature range. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 85mm
- Width:
- 42.9mm
Technical
Technical
| d | 45mm |
|---|---|
| Dsp | 85mm |
| B | 42.9mm |
| b | 7mm |
| C | 22mm |
| C2 | 26.4mm |
| Ca | 6.4mm |
| D1 | 72.3mm |
| d1 | 57.9mm |
| N | 9mm |
| S | 17.4mm |
| Dynamic load Cr | 32500 N |
| Static load C0r | 20400 N |
| Weight | 0.66 kg |
