SKU: H215-SKF

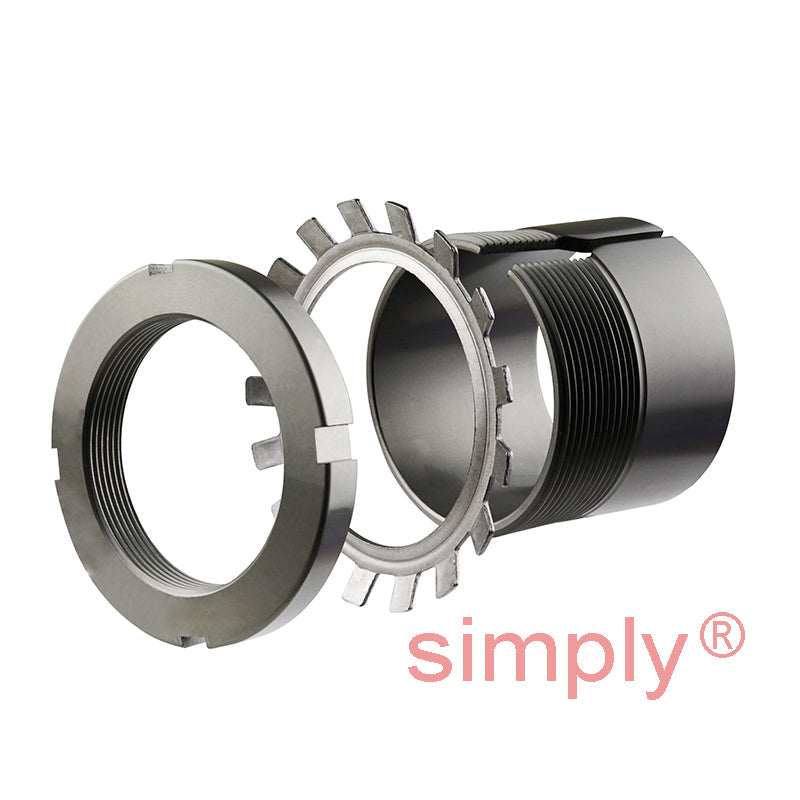

SKF H215 Adaptor Sleeve with Lock Nut and Locking Device for 65mm Shaft
SKF H215 Adaptor Sleeve with Lock Nut and Locking Device for 65mm Shaft
Regular price
$71.90
ex VAT
Regular price
Sale price
$71.90
ex VAT
In stock
Price Break
10+
$63.99
19+
$60.40
29+
$59.68
39+
$58.96
49+
$58.24
74+
$57.52
99+
$53.93
199+
$53.21
249+
$52.49
499+
$51.77
999+
$50.33
Description
Description
|
SKF Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position Benefits: Re-useable, adjustable, positive location, easy to dismount |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 65mm
- Outside Diameter:
- 98mm
- Width:
- 43mm
Technical
Technical
| --- | Dimensions |
|---|---|
| d1 | 65mm |
| d | 75mm |
| d3 | 98mm |
| B1 | 43mm |
| B2 | 14.5mm |
| G | Thread 75x2mm |
| Weight | 0.66 kg |
| --- | Assembly Parts |
| Sleeve | H215 |
| Nut | KM15 |
| Washer | MB15 |
| Hydraulic nut | HMV15E |
| --- | Matching Self Aligning Bearings |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=1215K+taper+self+open>1215K</a> |
