SKU: H216-SKF

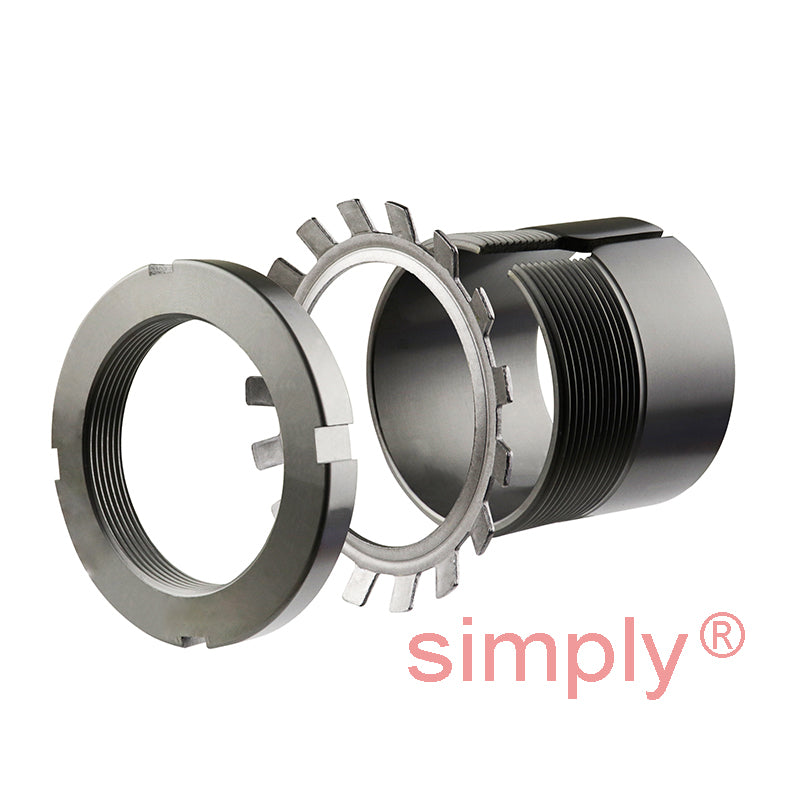

SKF H216 Adaptor Sleeve with Lock Nut and Locking Device for 70mm Shaft
SKF H216 Adaptor Sleeve with Lock Nut and Locking Device for 70mm Shaft
Regular price
$88.10
ex VAT
Regular price
Sale price
$88.10
ex VAT
In stock
Price Break
10+
$78.41
19+
$74.00
29+
$73.12
39+
$72.24
49+
$71.36
74+
$70.48
99+
$66.08
199+
$65.19
249+
$64.31
499+
$63.43
999+
$61.67
Description
Description
|
SKF Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position Benefits: Re-useable, adjustable, positive location, easy to dismount |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 70mm
- Outside Diameter:
- 105mm
- Width:
- 46mm
Technical
Technical
| --- | Dimensions |
|---|---|
| d1 | 70mm |
| d | 80mm |
| d3 | 105mm |
| B1 | 46mm |
| B2 | 17mm |
| G | Thread 80x2mm |
| Weight | 0.81 kg |
| --- | Assembly Parts |
| Sleeve | H216 |
| Nut | KM16 |
| Washer | MB16 |
| Hydraulic nut | HMV16E |
| --- | Matching Self Aligning Bearings |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=1216K+taper+self+open>1216K</a> |
