SKU: H217-SKF

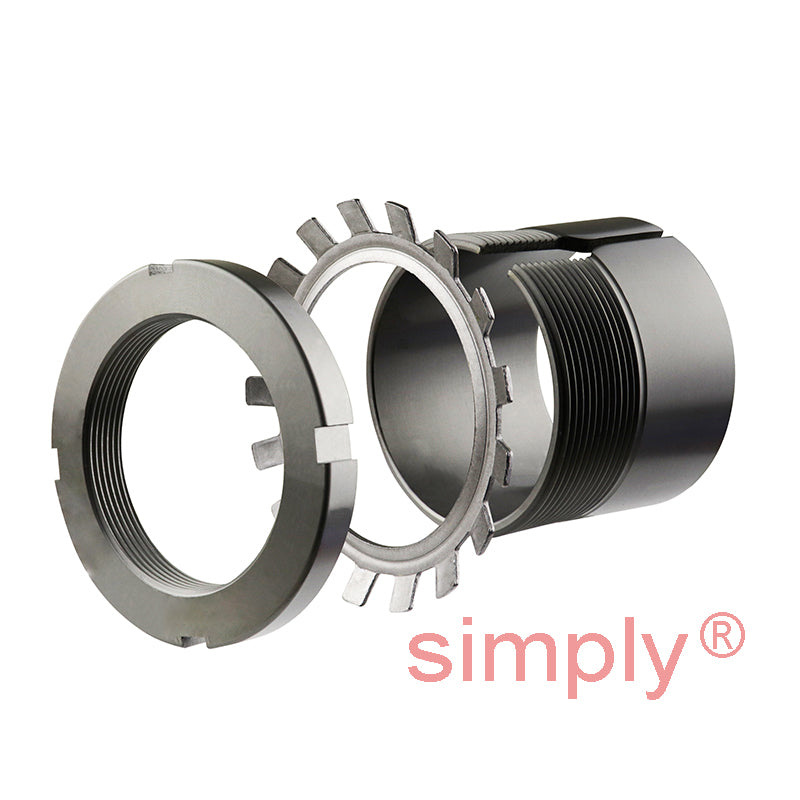

SKF H217 Adaptor Sleeve with Lock Nut and Locking Device for 75mm Shaft
SKF H217 Adaptor Sleeve with Lock Nut and Locking Device for 75mm Shaft
Regular price
$96.49
ex VAT
Regular price
Sale price
$96.49
ex VAT
In stock
Price Break
10+
$85.88
19+
$81.05
29+
$80.09
39+
$79.12
49+
$78.16
74+
$77.19
99+
$72.37
199+
$71.40
249+
$70.44
499+
$69.47
999+
$67.54
Description
Description
|
SKF Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position Benefits: Re-useable, adjustable, positive location, easy to dismount |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 75mm
- Outside Diameter:
- 110mm
- Width:
- 50mm
Technical
Technical
| --- | Dimensions |
|---|---|
| d1 | 75mm |
| d | 85mm |
| d3 | 110mm |
| B1 | 50mm |
| B2 | 18mm |
| G | Thread 85x2mm |
| Weight | 0.94 kg |
| --- | Assembly Parts |
| Sleeve | H217 |
| Nut | KM17 |
| Washer | MB17 |
| Hydraulic nut | HMV17E |
| --- | Matching Self Aligning Bearings |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=1217K+taper+self+open>1217K</a> |
