SKU: H218-SKF

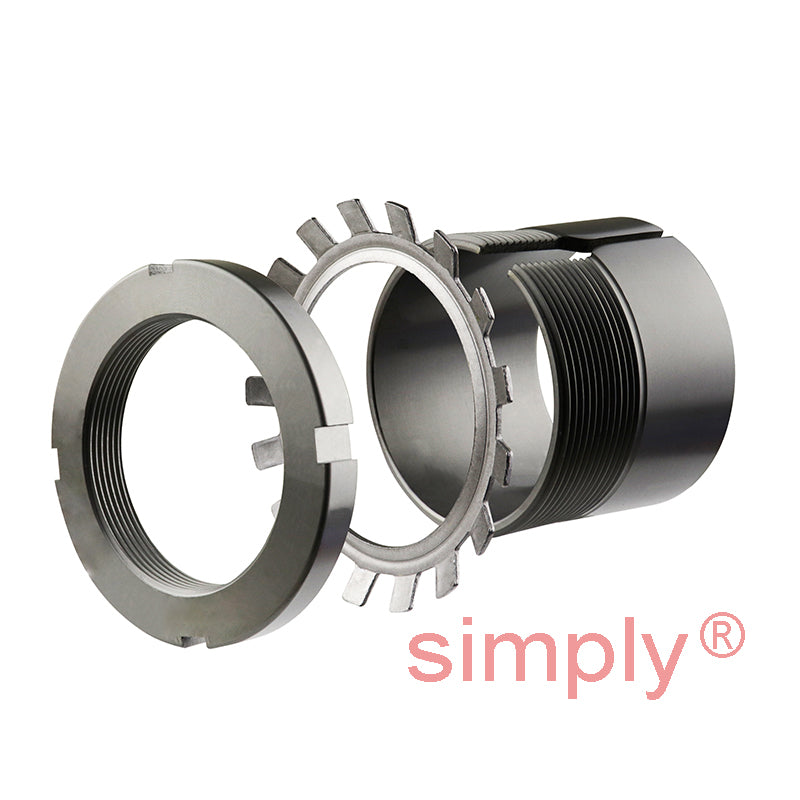

SKF H218 Adaptor Sleeve with Lock Nut and Locking Device for 80mm Shaft
SKF H218 Adaptor Sleeve with Lock Nut and Locking Device for 80mm Shaft
Regular price
$113.26
ex VAT
Regular price
Sale price
$113.26
ex VAT
In stock
Price Break
10+
$100.80
19+
$95.14
29+
$94.01
39+
$92.87
49+
$91.74
74+
$90.61
99+
$84.95
199+
$83.81
249+
$82.68
499+
$81.55
999+
$79.28
Description
Description
|
SKF Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position Benefits: Re-useable, adjustable, positive location, easy to dismount |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 80mm
- Outside Diameter:
- 120mm
- Width:
- 52mm
Technical
Technical
| --- | Dimensions |
|---|---|
| d1 | 80mm |
| d | 90mm |
| d3 | 120mm |
| B1 | 52mm |
| B2 | 18mm |
| G | Thread 90x2mm |
| Weight | 1.1 kg |
| --- | Assembly Parts |
| Sleeve | H218 |
| Nut | KM18 |
| Washer | MB18 |
| Hydraulic nut | HMV18E |
| --- | Matching Self Aligning Bearings |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=1218K+taper+self+open>1218K</a> |
