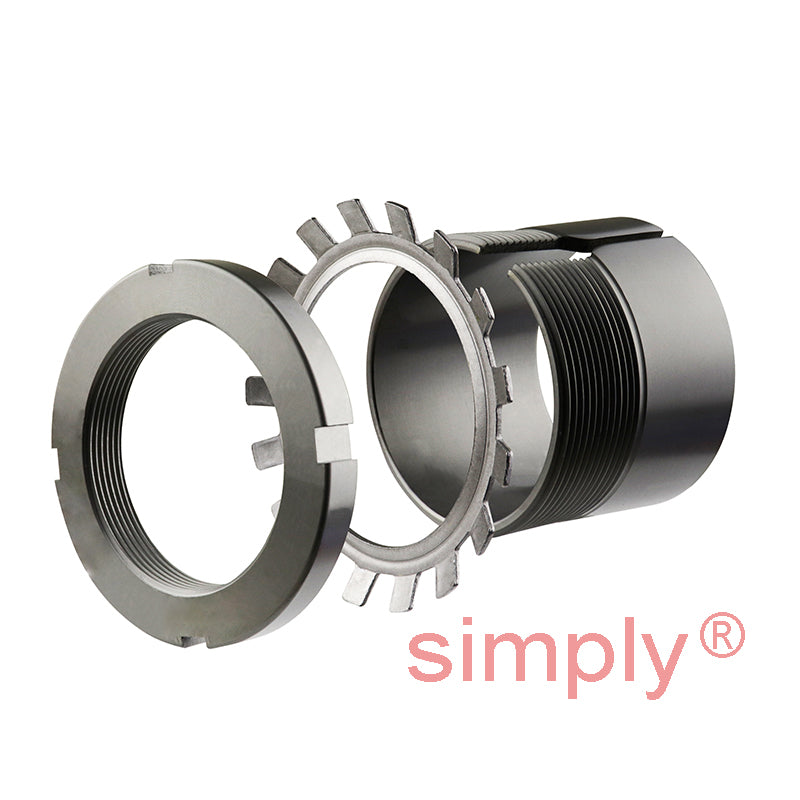

SKF H2326 Adaptor Sleeve with Lock Nut and Locking Device for 115mm Shaft
SKF H2326 Adaptor Sleeve with Lock Nut and Locking Device for 115mm Shaft
Regular price
$357.46
ex VAT
Regular price
Sale price
$357.46
ex VAT
In stock
Price Break
10+
$318.14
19+
$300.27
29+
$296.69
39+
$293.12
49+
$289.54
74+
$285.97
99+
$268.10
199+
$264.52
249+
$260.95
499+
$257.37
999+
$250.22
Description
Description
|
SKF Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position Benefits: Re-useable, adjustable, positive location, easy to dismount |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 115mm
- Outside Diameter:
- 165mm
- Width:
- 121mm
Technical
Technical
| --- | Dimensions |
|---|---|
| d1 | 115mm |
| d | 130mm |
| d3 | 165mm |
| B1 | 121mm |
| B2 | 23mm |
| G | Thread 130x2mm |
| Weight | 4.45 kg |
| --- | Assembly Parts |
| Sleeve | H2326 |
| Nut | KM26 |
| Washer | MB26 |
| Hydraulic nut | HMV26E |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=23226K+taper>23226K</a> |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=22326K+taper>22326K</a> |
