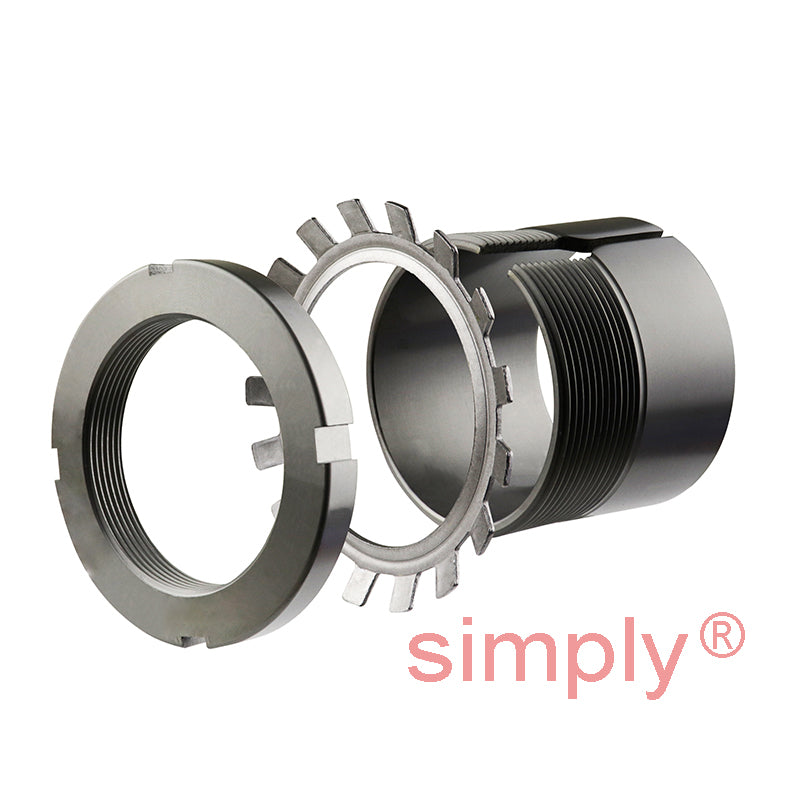

SKF H2332 Adaptor Sleeve with Lock Nut and Locking Device for 140mm Shaft
SKF H2332 Adaptor Sleeve with Lock Nut and Locking Device for 140mm Shaft
Regular price
$599.14
ex VAT
Regular price
Sale price
$599.14
ex VAT
In stock
Price Break
10+
$533.23
19+
$503.28
29+
$497.29
39+
$491.29
49+
$485.30
74+
$479.31
99+
$449.36
199+
$443.36
249+
$437.37
499+
$431.38
999+
$419.40
Description
Description
|
SKF Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position Benefits: Re-useable, adjustable, positive location, easy to dismount |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 140mm
- Outside Diameter:
- 210mm
- Width:
- 147mm
Technical
Technical
| --- | Dimensions |
|---|---|
| d1 | 140mm |
| d | 160mm |
| d3 | 210mm |
| B1 | 147mm |
| B2 | 27.5mm |
| G | Thread 160x3mm |
| Weight | 8.8 kg |
| --- | Assembly Parts |
| Sleeve | H2332 |
| Nut | KM32 |
| Washer | MB32 |
| Hydraulic nut | HMV32E |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=23232K+taper>23232K</a> |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=22332K+taper>22332K</a> |
