SKU: H2338-SKF

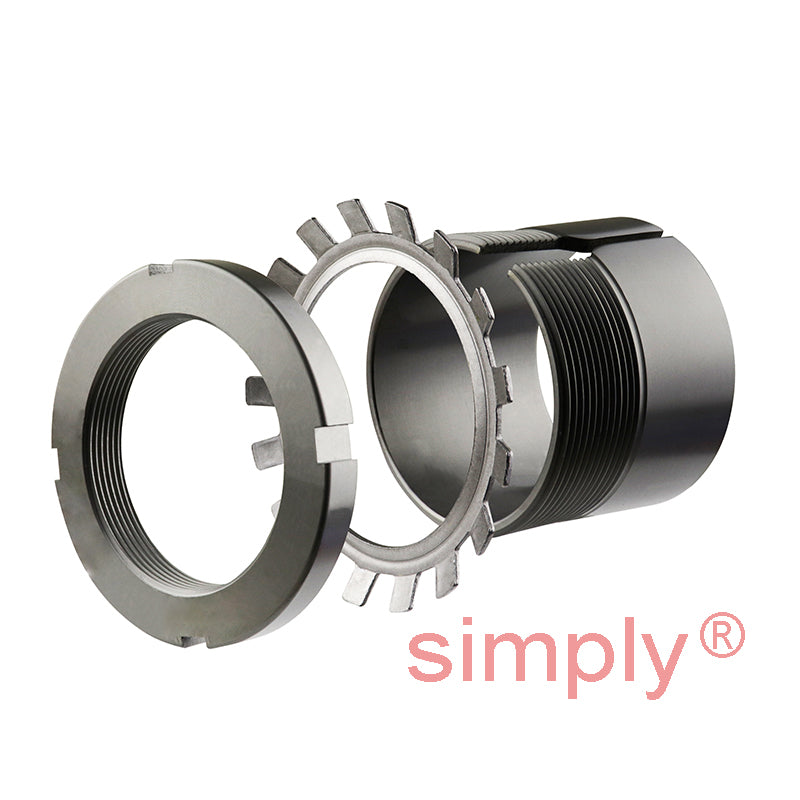

SKF H2338 Adaptor Sleeve with Lock Nut and Locking Device for 170mm Shaft
SKF H2338 Adaptor Sleeve with Lock Nut and Locking Device for 170mm Shaft
Regular price
$1,013.15
ex VAT
Regular price
Sale price
$1,013.15
ex VAT
In stock
Price Break
10+
$901.70
19+
$851.05
29+
$840.91
39+
$830.78
49+
$820.65
74+
$810.52
99+
$759.86
199+
$749.73
249+
$739.60
499+
$729.47
999+
$709.21
Description
Description
|
SKF Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position Benefits: Re-useable, adjustable, positive location, easy to dismount |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 170mm
- Outside Diameter:
- 240mm
- Width:
- 169mm
Technical
Technical
| --- | Dimensions |
|---|---|
| d1 | 170mm |
| d | 190mm |
| d3 | 240mm |
| B1 | 169mm |
| B2 | 30.5mm |
| G | Thread 190x3mm |
| Weight | 12 kg |
| --- | Assembly Parts |
| Sleeve | H2338 |
| Nut | KM38 |
| Washer | MB38 |
| Hydraulic nut | HMV38E |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=23238K+taper>23238K</a> |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=22338K+taper>22338K</a> |
