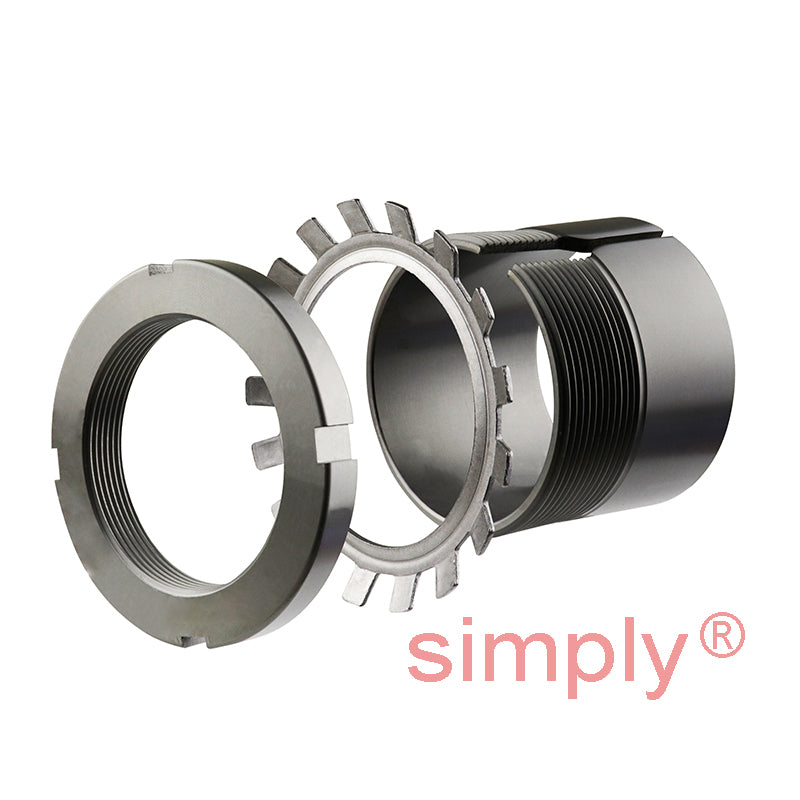

SKF H2340 Adaptor Sleeve with Lock Nut and Locking Device for 180mm Shaft
SKF H2340 Adaptor Sleeve with Lock Nut and Locking Device for 180mm Shaft
Regular price
$1,133.72
ex VAT
Regular price
Sale price
$1,133.72
ex VAT
In stock
Price Break
10+
$1,009.01
19+
$952.32
29+
$940.99
39+
$929.65
49+
$918.31
74+
$906.98
99+
$850.29
199+
$838.95
249+
$827.62
499+
$816.28
999+
$793.60
Description
Description
|
SKF Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position Benefits: Re-useable, adjustable, positive location, easy to dismount |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 180mm
- Outside Diameter:
- 250mm
- Width:
- 176mm
Technical
Technical
| --- | Dimensions |
|---|---|
| d1 | 180mm |
| d | 200mm |
| d3 | 250mm |
| B1 | 176mm |
| B2 | 31.5mm |
| G | Thread 200x3mm |
| Weight | 13.5 kg |
| --- | Assembly Parts |
| Sleeve | H2340 |
| Nut | KM40 |
| Washer | MB40 |
| Hydraulic nut | HMV40E |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=23240K+taper>23240K</a> |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=22340K+taper>22340K</a> |
