SKU: H3026-SKF

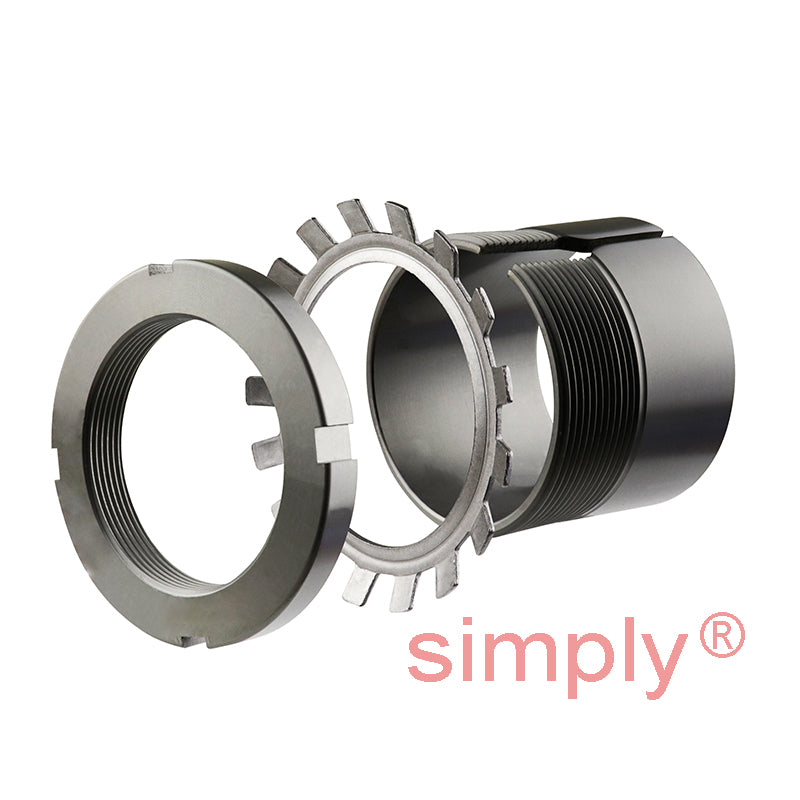

SKF H3026 Adaptor Sleeve with Lock Nut and Locking Device for 115mm Shaft
SKF H3026 Adaptor Sleeve with Lock Nut and Locking Device for 115mm Shaft
Regular price
$293.79
ex VAT
Regular price
Sale price
$293.79
ex VAT
In stock
Price Break
10+
$261.47
19+
$246.78
29+
$243.85
39+
$240.91
49+
$237.97
74+
$235.03
99+
$220.34
199+
$217.40
249+
$214.47
499+
$211.53
999+
$205.65
Description
Description
|
SKF Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position Benefits: Re-useable, adjustable, positive location, easy to dismount |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 115mm
- Outside Diameter:
- 155mm
- Width:
- 80mm
Technical
Technical
| --- | Dimensions |
|---|---|
| d1 | 115mm |
| d | 130mm |
| d3 | 155mm |
| B1 | 80mm |
| B2 | 23mm |
| G | Thread 130x2mm |
| Weight | 2.8 kg |
| --- | Assembly Parts |
| Sleeve | H3026 |
| Nut | KM126 |
| Washer | MB126 |
| Hydraulic nut | HMV26E |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=23026K+taper>23026K</a> |
| --- | Matching Carb Toroidal Bearings |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=C3026K+taper>C3026K</a> |
