SKU: H3030-SKF

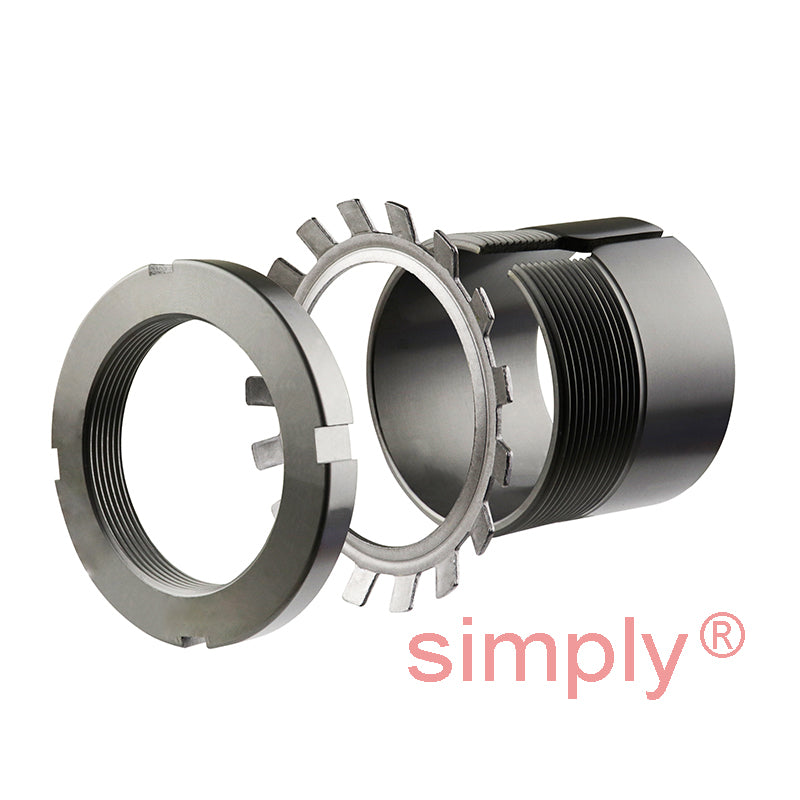

SKF H3030 Adaptor Sleeve with Lock Nut and Locking Device for 135mm Shaft
SKF H3030 Adaptor Sleeve with Lock Nut and Locking Device for 135mm Shaft
Regular price
$408.46
ex VAT
Regular price
Sale price
$408.46
ex VAT
In stock
Price Break
10+
$363.53
19+
$343.11
29+
$339.02
39+
$334.94
49+
$330.85
74+
$326.77
99+
$306.35
199+
$302.26
249+
$298.18
499+
$294.09
999+
$285.92
Couldn't load pickup availability
Description
Description
|
SKF Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position Benefits: Re-useable, adjustable, positive location, easy to dismount |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 135mm
- Outside Diameter:
- 180mm
- Width:
- 87mm
Technical
Technical
| --- | Dimensions |
|---|---|
| d1 | 135mm |
| d | 150mm |
| d3 | 180mm |
| B1 | 87mm |
| B2 | 26mm |
| G | Thread 150x2mm |
| Weight | 3.75 kg |
| --- | Assembly Parts |
| Sleeve | H3030 |
| Nut | KM130 |
| Washer | MB130 |
| Hydraulic nut | HMV30E |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=23030K+taper>23030K</a> |
