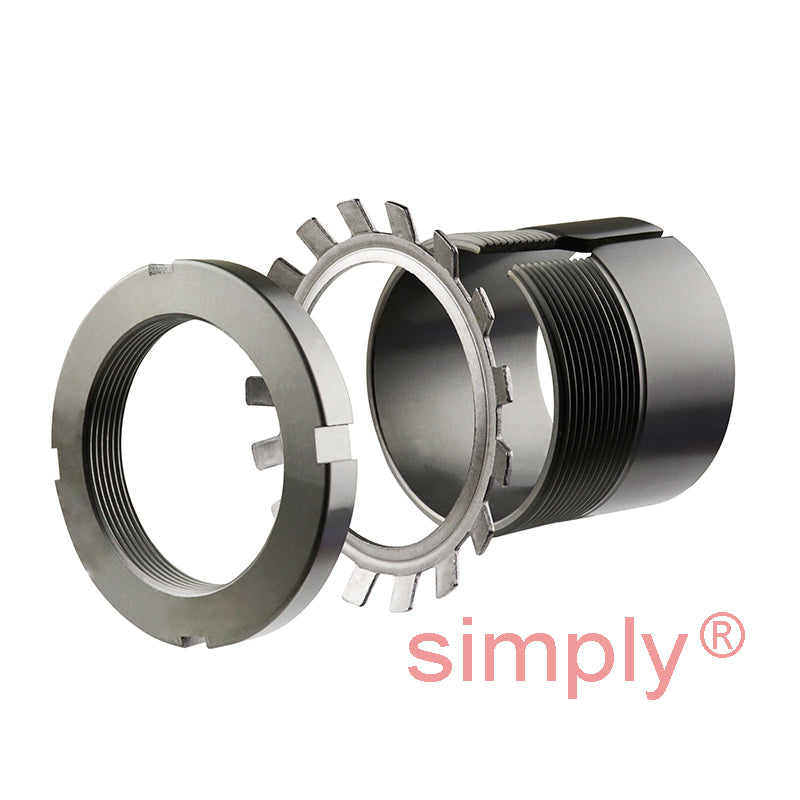

SKF H3036 Adaptor Sleeve with Lock Nut and Locking Device for 160mm Shaft
SKF H3036 Adaptor Sleeve with Lock Nut and Locking Device for 160mm Shaft
Regular price
$598.47
ex VAT
Regular price
Sale price
$598.47
ex VAT
In stock
Price Break
10+
$532.64
19+
$502.71
29+
$496.73
39+
$490.75
49+
$484.76
74+
$478.78
99+
$448.85
199+
$442.87
249+
$436.88
499+
$430.90
999+
$418.93
Description
Description
|
SKF Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position Benefits: Re-useable, adjustable, positive location, easy to dismount |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 160mm
- Outside Diameter:
- 210mm
- Width:
- 109mm
Technical
Technical
| --- | Dimensions |
|---|---|
| d1 | 160mm |
| d | 180mm |
| d3 | 210mm |
| B1 | 109mm |
| B2 | 29.5mm |
| G | Thread 180x3mm |
| Weight | 6.7 kg |
| --- | Assembly Parts |
| Sleeve | H3036 |
| Nut | KM136 |
| Washer | MB136 |
| Hydraulic nut | HMV36E |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=23036K+taper>23036K</a> |
| --- | Matching Carb Toroidal Bearings |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=C3036K+taper>C3036K</a> |
