SKU: H3038-SKF

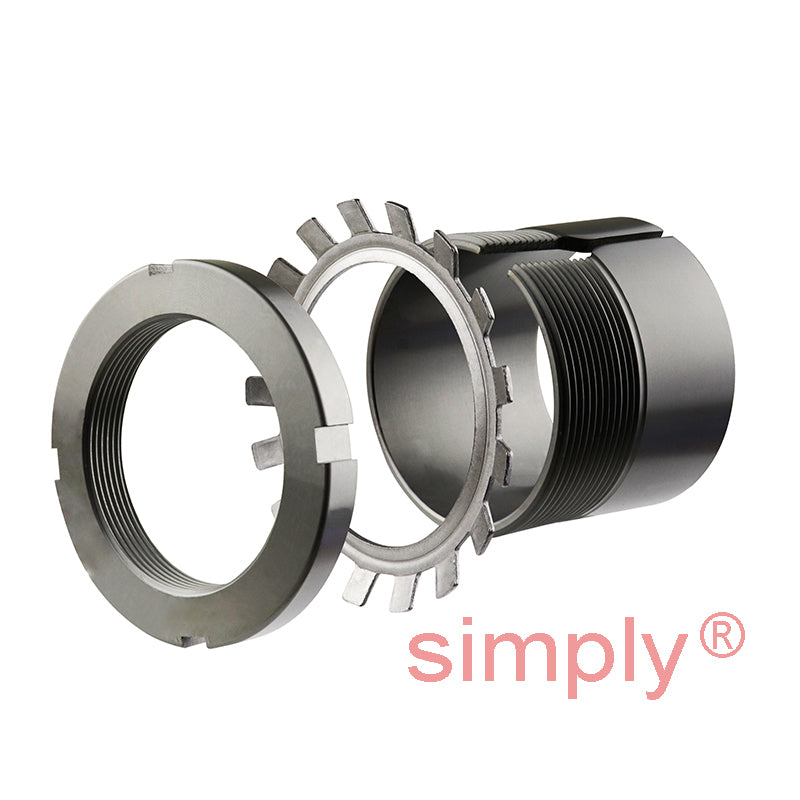

SKF H3038 Adaptor Sleeve with Lock Nut and Locking Device for 170mm Shaft
SKF H3038 Adaptor Sleeve with Lock Nut and Locking Device for 170mm Shaft
Regular price
$700.70
ex VAT
Regular price
Sale price
$700.70
ex VAT
In stock
Price Break
10+
$623.62
19+
$588.59
29+
$581.58
39+
$574.57
49+
$567.57
74+
$560.56
99+
$525.53
199+
$518.52
249+
$511.51
499+
$504.50
999+
$490.49
Description
Description
|
SKF Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position Benefits: Re-useable, adjustable, positive location, easy to dismount |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 170mm
- Outside Diameter:
- 220mm
- Width:
- 112mm
Technical
Technical
| --- | Dimensions |
|---|---|
| d1 | 170mm |
| d | 190mm |
| d3 | 220mm |
| B1 | 112mm |
| B2 | 30.5mm |
| G | Thread 190x3mm |
| Weight | 7.25 kg |
| --- | Assembly Parts |
| Sleeve | H3038 |
| Nut | KM138 |
| Washer | MB138 |
| Hydraulic nut | HMV38E |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=23038K+taper>23038K</a> |
| --- | Matching Carb Toroidal Bearings |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=C3038K+taper>C3038K</a> |
