SKU: H305C-SKF

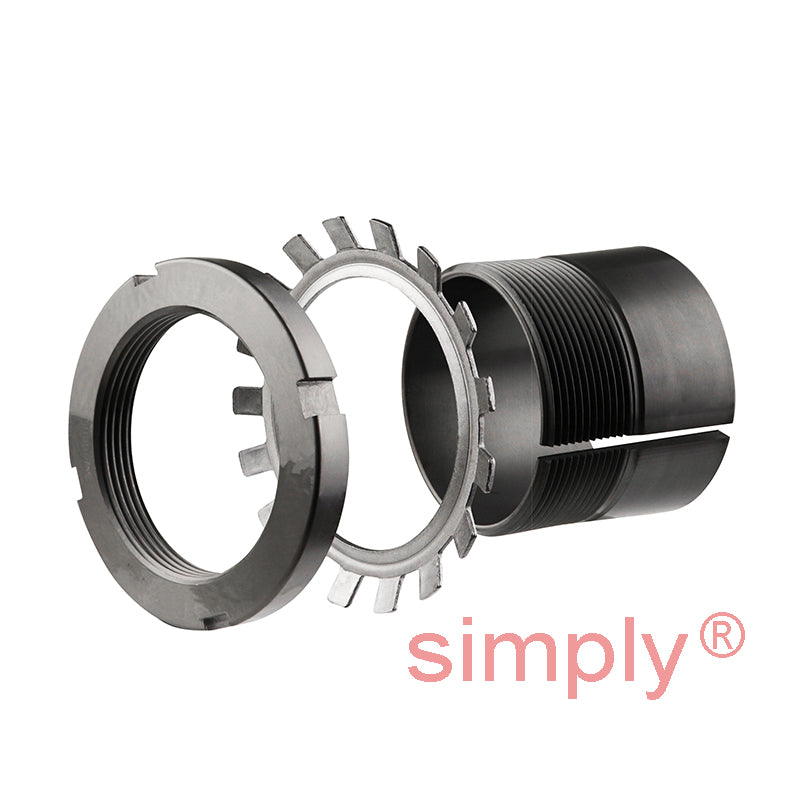

SKF H305C Adaptor Sleeve with Lock Nut and Locking Device for 20mm Shaft
SKF H305C Adaptor Sleeve with Lock Nut and Locking Device for 20mm Shaft
Regular price
$41.08
ex VAT
Regular price
Sale price
$41.08
ex VAT
In stock
Price Break
10+
$36.56
19+
$34.51
29+
$34.10
39+
$33.69
49+
$33.27
74+
$32.86
99+
$30.81
199+
$30.40
249+
$29.99
499+
$29.58
999+
$28.76
Description
Description
|
SKF Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position Benefits: Re-useable, adjustable, positive location, easy to dismount |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 38mm
- Width:
- 29mm
Technical
Technical
| --- | Dimensions |
|---|---|
| d1 | 20mm |
| d | 25mm |
| d3 | 38mm |
| B1 | 29mm |
| B2 | 9mm |
| G | Thread 25x1.5mm |
| Weight | 0.071 kg |
| --- | Assembly Parts |
| Sleeve | H305C |
| Nut | KM5 |
| Washer | MB5C |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=2205K-2RS+taper>2205K-2RS</a> |
