SKU: H3128-SKF

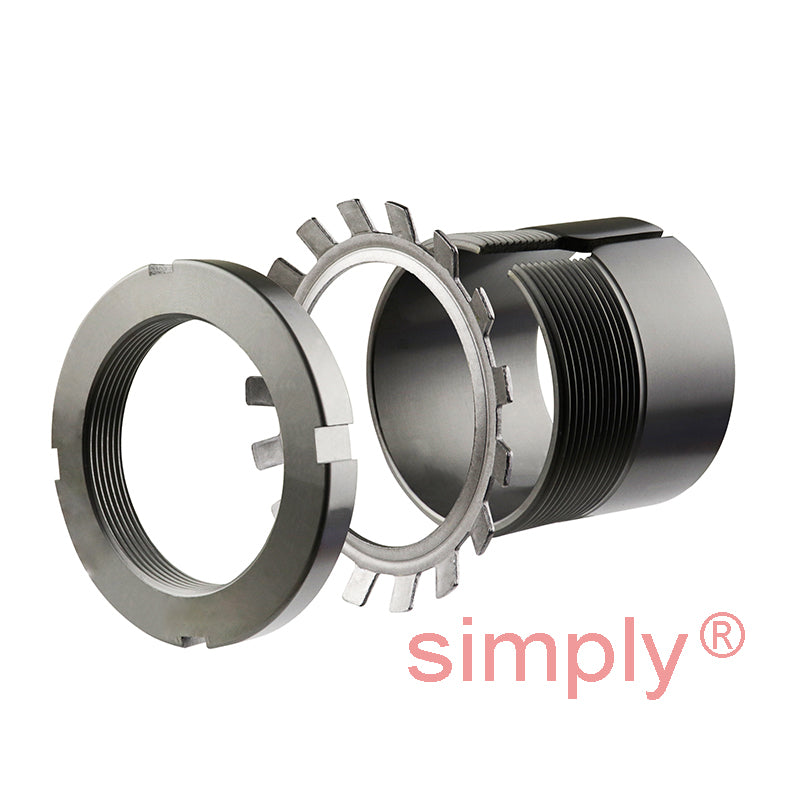

SKF H3128 Adaptor Sleeve with Lock Nut and Locking Device for 125mm Shaft
SKF H3128 Adaptor Sleeve with Lock Nut and Locking Device for 125mm Shaft
Regular price
$313.36
ex VAT
Regular price
Sale price
$313.36
ex VAT
In stock
Price Break
10+
$278.89
19+
$263.22
29+
$260.09
39+
$256.96
49+
$253.82
74+
$250.69
99+
$235.02
199+
$231.89
249+
$228.75
499+
$225.62
999+
$219.35
Description
Description
|
SKF Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position Benefits: Re-useable, adjustable, positive location, easy to dismount |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 125mm
- Outside Diameter:
- 180mm
- Width:
- 97mm
Technical
Technical
| --- | Dimensions |
|---|---|
| d1 | 125mm |
| d | 140mm |
| d3 | 180mm |
| B1 | 97mm |
| B2 | 24mm |
| G | Thread 140x2mm |
| Weight | 4.1 kg |
| --- | Assembly Parts |
| Sleeve | H3128 |
| Nut | KM28 |
| Washer | MB28 |
| Hydraulic nut | HMV28E |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=23128K+taper>23128K</a> |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=22228K+taper>22228K</a> |
