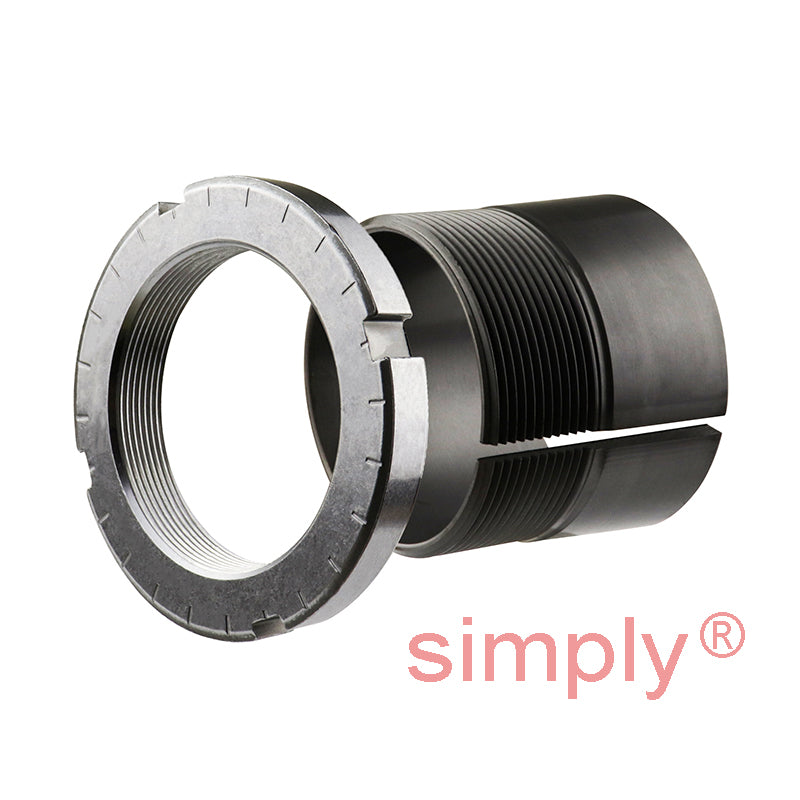

SKF H312E Adaptor Sleeve with Lock Nut and Locking Device for 55mm Shaft
SKF H312E Adaptor Sleeve with Lock Nut and Locking Device for 55mm Shaft
Regular price
$55.30
ex VAT
Regular price
Sale price
$55.30
ex VAT
In stock
Price Break
10+
$49.22
19+
$46.45
29+
$45.90
39+
$45.35
49+
$44.79
74+
$44.24
99+
$41.48
199+
$40.92
249+
$40.37
499+
$39.82
999+
$38.71
Description
Description
|
SKF Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position Benefits: Re-useable, adjustable, positive location, easy to dismount |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 55mm
- Outside Diameter:
- 80mm
- Width:
- 47mm
Technical
Technical
| --- | Dimensions |
|---|---|
| d1 | 55mm |
| d | 60mm |
| d3 | 80mm |
| B1 | 47mm |
| B2 | 14mm |
| G | Thread 60x2mm |
| Weight | 0.4 kg |
| --- | Assembly Parts |
| Sleeve | H312E |
| Nut | KMFE12 |
| Hydraulic nut | HMV12E |
| --- | Matching Carb Toroidal Bearings |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=C2212KTN9+taper>C2212KTN9</a> |
