SKU: H3140-SKF

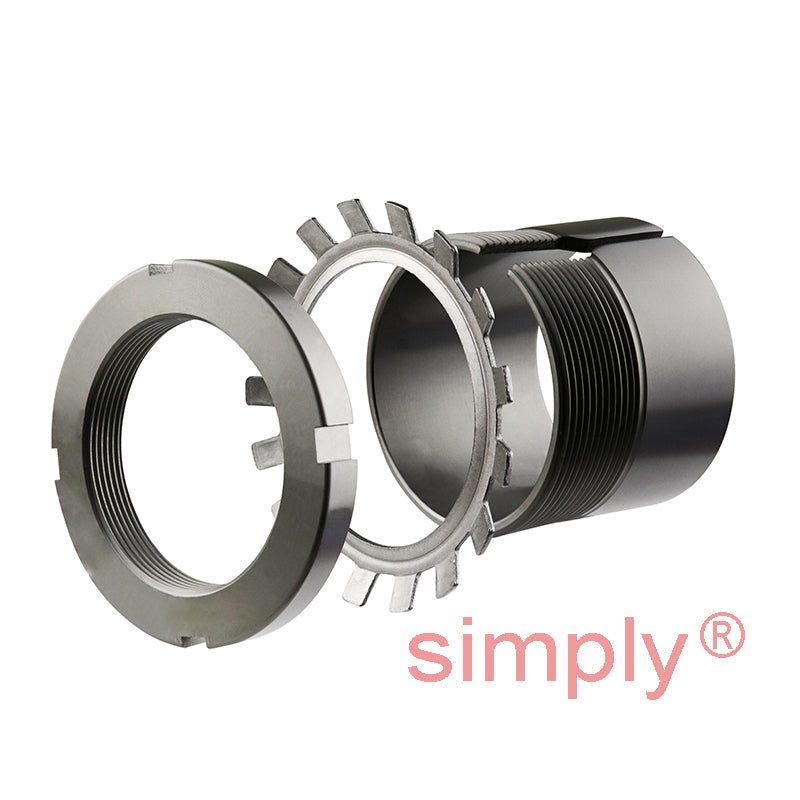

SKF H3140 Adaptor Sleeve with Lock Nut and Locking Device for 180mm Shaft
SKF H3140 Adaptor Sleeve with Lock Nut and Locking Device for 180mm Shaft
Regular price
$702.60
ex VAT
Regular price
Sale price
$702.60
ex VAT
In stock
Price Break
10+
$625.31
19+
$590.18
29+
$583.16
39+
$576.13
49+
$569.11
74+
$562.08
99+
$526.95
199+
$519.92
249+
$512.90
499+
$505.87
999+
$491.82
Couldn't load pickup availability
Description
Description
|
SKF Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position Benefits: Re-useable, adjustable, positive location, easy to dismount |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 180mm
- Outside Diameter:
- 250mm
- Width:
- 150mm
Technical
Technical
| --- | Dimensions |
|---|---|
| d1 | 180mm |
| d | 200mm |
| d3 | 250mm |
| B1 | 150mm |
| B2 | 31.5mm |
| G | Thread 200x3mm |
| Weight | 12 kg |
| --- | Assembly Parts |
| Sleeve | H3140 |
| Nut | KM40 |
| Washer | MB40 |
| Hydraulic nut | HMV40E |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=23140K+taper>23140K</a> |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=22240K+taper>22240K</a> |
| --- | Matching Carb Toroidal Bearings |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=C3140K+taper>C3140K</a> |
