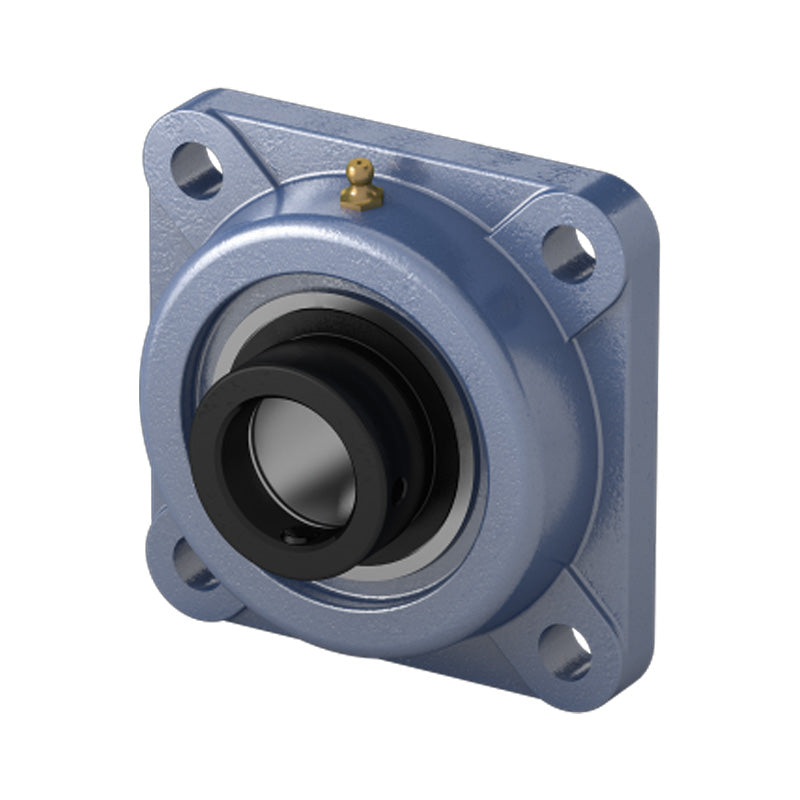

HCF209 Metric Four Bolt Square Cast Iron Flange Housing with 45mm Bore Insert
HCF209 Metric Four Bolt Square Cast Iron Flange Housing with 45mm Bore Insert
Regular price
$35.66
ex VAT
Regular price
Sale price
$35.66
ex VAT
In stock
Price Break
10+
$31.74
19+
$29.95
29+
$29.60
39+
$29.24
49+
$28.88
74+
$28.53
99+
$26.75
199+
$26.39
249+
$26.03
499+
$25.68
999+
$24.96
Description
Description
HCF200 Series Normal Duty 4 Bolt Square Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the square cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar with a grub screw to facilitate securing the bearing to the shaft after installation. The inserts can be fully removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar / grub screw fixing
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar / grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 45mm
- Style:
- HCF
- Bolt Hole Centres:
- 105mm
Technical
Technical
| d | 45mm |
|---|---|
| a | 137mm |
| e | 105mm |
| i | 22mm |
| g | 18mm |
| l | 38mm |
| S | 16mm |
| z | 56.9mm |
| Bi | 56.3mm |
| n | 21.4mm |
| Bolt size | M14 |
| Bearing | HC209 |
| Housing | F209 |
| Mass | 2.13 kg |
