SKU: HCFC207-22

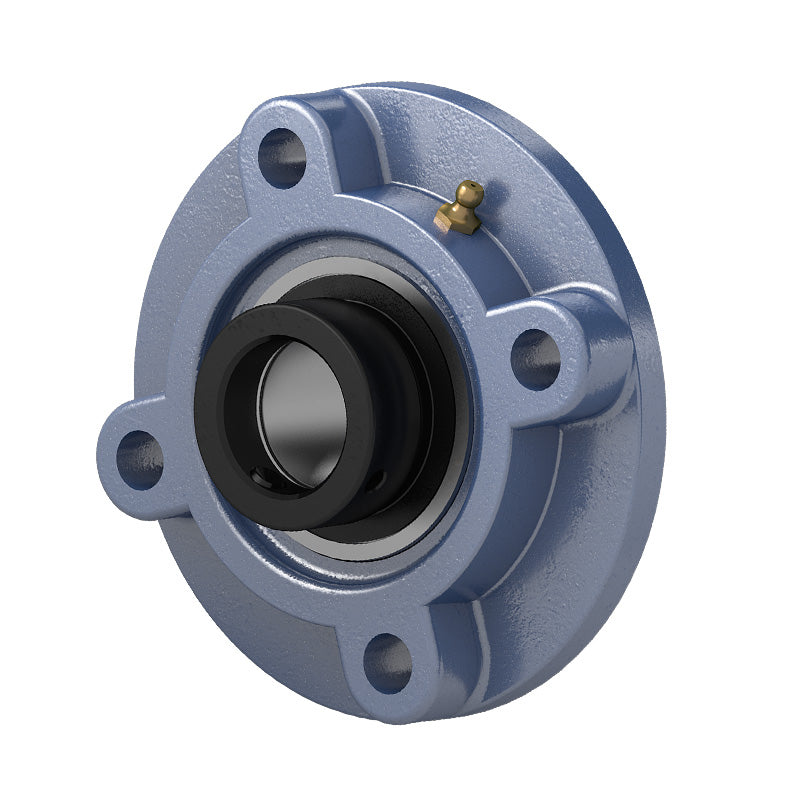

HCFC207-22 Imperial Four Bolt Cast Iron Round Flanged Housing with 1-3/8 inch Eccentric Collar Insert
HCFC207-22 Imperial Four Bolt Cast Iron Round Flanged Housing with 1-3/8 inch Eccentric Collar Insert
Regular price
$32.40
ex VAT
Regular price
Sale price
$32.40
ex VAT
In stock
Price Break
10+
$28.84
19+
$27.22
29+
$26.89
39+
$26.57
49+
$26.24
74+
$25.92
99+
$24.30
199+
$23.98
249+
$23.65
499+
$23.33
999+
$22.68
Description
Description
HCFC200 Series Normal Duty 4 Bolt Round Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar with a grub screw to facilitate securing the bearing to the shaft after installation. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar / grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 34.93mm = 1.375 (1-3/8) inch
- Style:
- HCFC
- Pitch Circle Diameter:
- 77.79mm = 3.063 (3-1/16) inch
Technical
Technical
| d | 1-3/8 inch |
|---|---|
| a | 5-5/16 inch |
| p | 4-21/64 inch |
| (e) | 3-1/16 inch |
| i | 7/16 inch |
| s | 35/64 inch |
| j | 5/16 inch |
| k | 23/64 inch |
| g | 1-1/32 inch |
| f | 3.5433 inch |
| z | 145/64 inch |
| B1 | 2.012 inch |
| n | 0.74 inch |
| Bolt size | 7/16 inch |
| Bearing no | HC207-22 |
| Housing no | FC207 |
| Weight | 1.67 kg |
