SKU: HCFL212

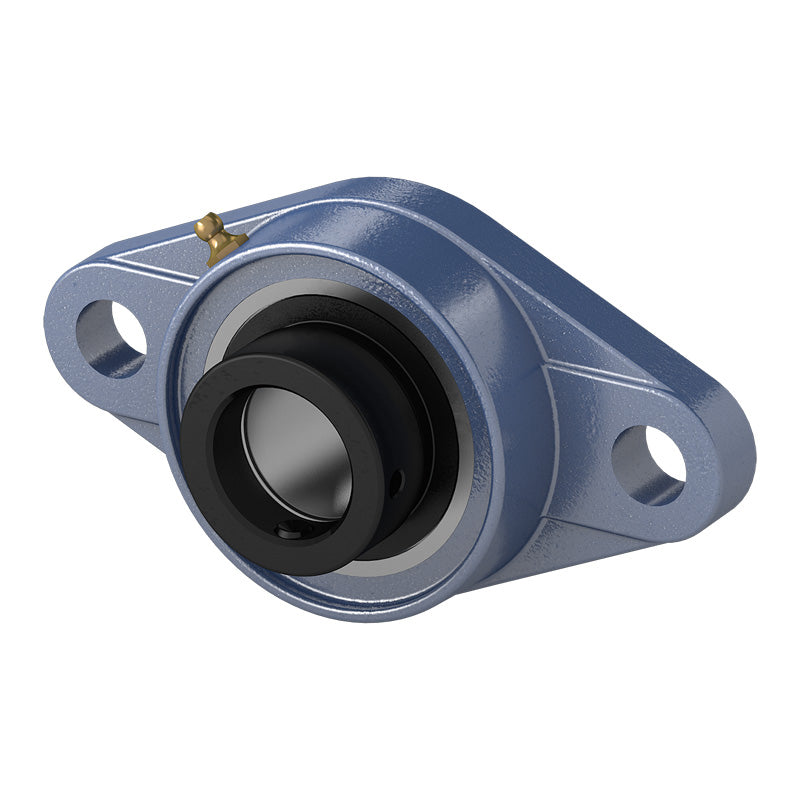

HCFL212 Metric Two Bolt Cast Iron Oval Housing with 60mm Eccentric Collar Insert
HCFL212 Metric Two Bolt Cast Iron Oval Housing with 60mm Eccentric Collar Insert
Regular price
$89.80
ex VAT
Regular price
Sale price
$89.80
ex VAT
In stock
Price Break
10+
$79.92
19+
$75.43
29+
$74.53
39+
$73.64
49+
$72.74
74+
$71.84
99+
$67.35
199+
$66.45
249+
$65.55
499+
$64.66
999+
$62.86
Description
Description
HCFL200 Series Normal Duty 2 Bolt Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 60mm
- Style:
- HCFL
- Bolt Hole Centres:
- 202mm
Technical
Technical
| d | 60mm |
|---|---|
| a | 250mm |
| e | 202mm |
| i | 29mm |
| g | 18mm |
| l | 48mm |
| s | 23mm |
| b | 140mm |
| z | 75.8mm |
| B1 | 77.8mm |
| n | 31mm |
| Bolt size | M20 |
| Bearing no | HC212 |
| Housing no | FL212 |
| Weight | 3.97 kg |
