SKU: HCFL217-52

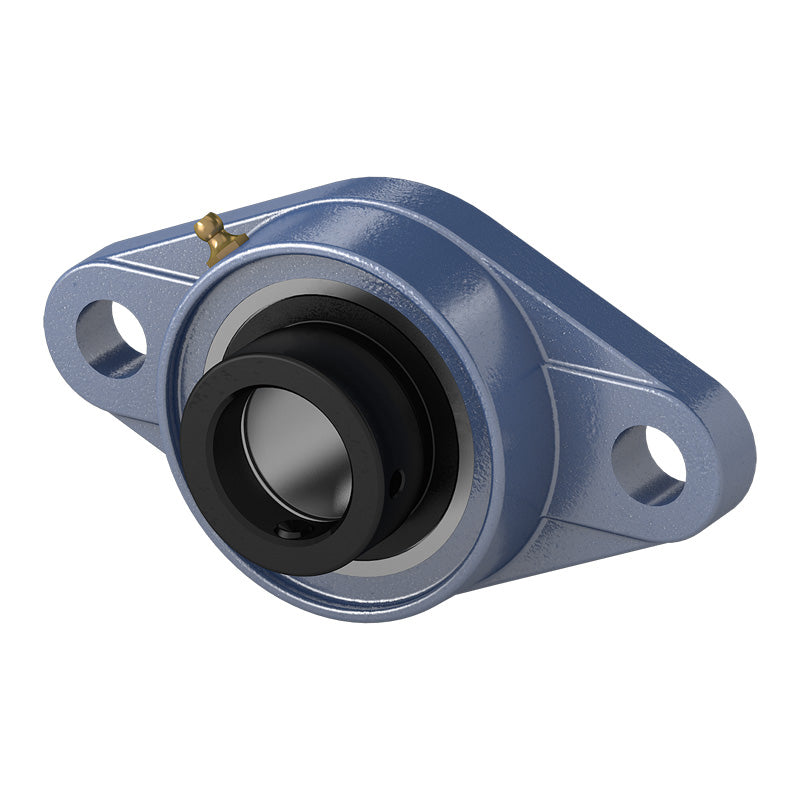

HCFL217-52 Imperial Two Bolt Cast Iron Oval Housing with 3-1/4 inch Eccentric Collar Insert
HCFL217-52 Imperial Two Bolt Cast Iron Oval Housing with 3-1/4 inch Eccentric Collar Insert
Regular price
$171.52
ex VAT
Regular price
Sale price
$171.52
ex VAT
In stock
Price Break
10+
$152.65
19+
$144.08
29+
$142.36
39+
$140.65
49+
$138.93
74+
$137.22
99+
$128.64
199+
$126.92
249+
$125.21
499+
$123.49
999+
$120.06
Description
Description
HCFL200 Series Normal Duty 2 Bolt Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 82.55mm = 3.25 (3-1/4) inch
- Style:
- HCFL
- Bolt Hole Centres:
- 147.24mm = 5.797 (5-51/64) inch
Technical
Technical
| d | 3-1/4 inch |
|---|---|
| a | 9-27/32 inch |
| e | 5-51/64 inch |
| i | 23/32 inch |
| g | 1-25/32 inch |
| l | 7.0866 inch |
| s | 29/32 inch |
| b | 7-15/32 inch |
| z | 3-13/32 inch |
| B1 | 2.906 inch |
| n | 0.921 inch |
| Bolt size | 7/8 inch |
| Bearing no | HC217-52 |
| Housing no | FL217 |
| Weight | 8.7071 kg |
