SKU: HCP218
HCP218 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 90mm Eccentric Collar Insert
HCP218 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 90mm Eccentric Collar Insert
Regular price
$195.00
ex VAT
Regular price
Sale price
$195.00
ex VAT
In stock
Price Break
10+
$173.55
19+
$163.80
29+
$161.85
39+
$159.90
49+
$157.95
74+
$156.00
99+
$146.25
199+
$144.30
249+
$142.35
499+
$140.40
999+
$136.50
Description
Description

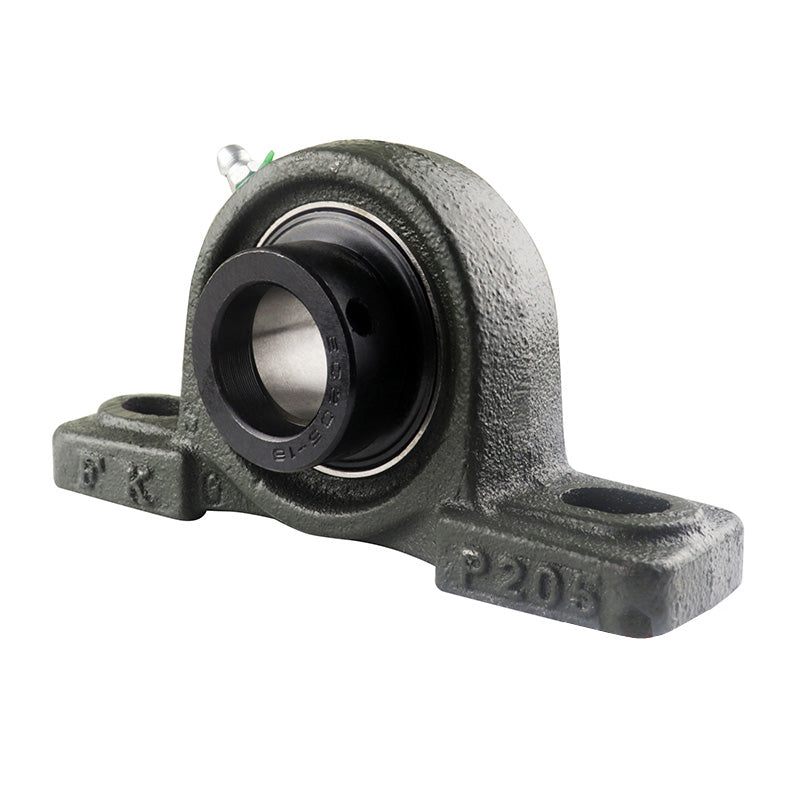

HCP200 Series Normal Duty 2 Bolt Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the cast iron housing. The bearing insert has an eccentric collar and grub screws to allow locking to the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar / grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 90mm
- Style:
- HCP
- Bolt Hole Centres:
- 262mm
Technical
Technical
| d | 90mm |
|---|---|
| h | 101.6mm |
| e | 262mm |
| a | 327mm |
| b | 88mm |
| s1 | 27mm |
| s2 | 30mm |
| g | 33mm |
| w | 198mm |
| B1 | 72.6mm |
| n | 24.5mm |
| Bolt size | M22 |
| Bearing no | HC218 |
| Housing no | P218 |
| Weight | 11.41 kg |
