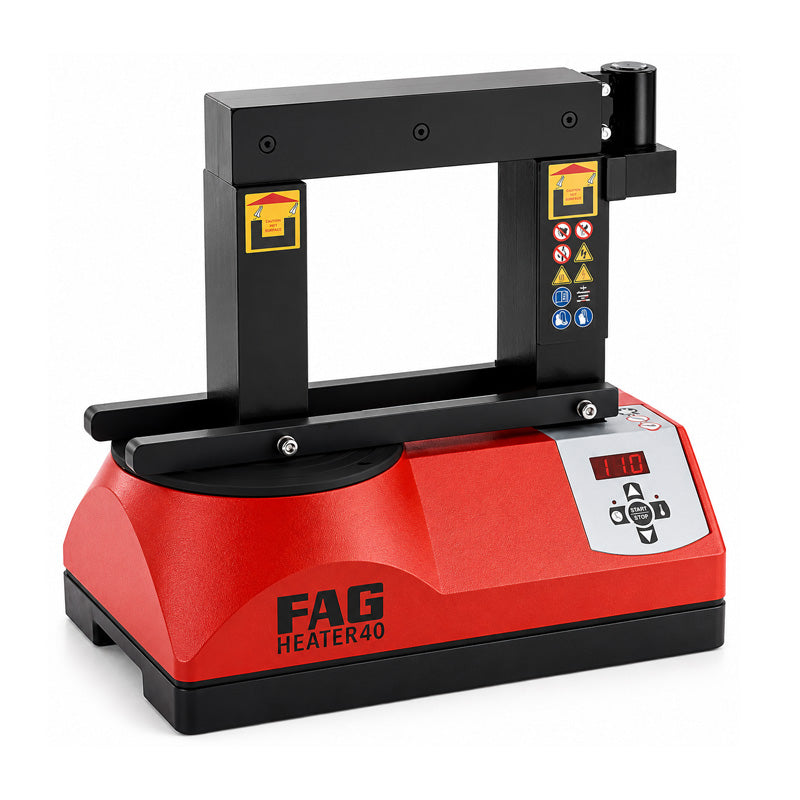

• FAG HEATER40 230V Portable Induction Bearing Heater for up to 40 kg Bearings - Allow 2-3 Days
1 1

SKU: HEATER40-FAG

FAG HEATER40 230V Portable Induction Bearing Heater for up to 40 kg Bearings - Allow 2-3 Days

FAG HEATER40 230V Portable Induction Bearing Heater for up to 40 kg Bearings - Allow 2-3 Days
$6,750.36 ex VAT
$6,750.36 ex VAT
Sale Sold out

In stock

Price Break
2+ $6,412.84
5+ $6,075.32
10+ $5,737.81
15+ $5,400.29
20+ $5,265.28
30+ $5,130.27
50+ $4,455.24
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
FAG Heater40 Induction Heater: This table unit for mobile and fixed use is designed to heat bearings and other rotationally symmetrical parts made from steel so that they can be mounted more easily on a shaft to achieve a tight fit. Horizontal coil position allows uniform heating and prevents bearing damage from brinelling caused by too rapid heating of the workpiece. This device is suitable for work pieces of a minimum bore of 20mm (15mm with accessory ledge) with a mass of up to 40kg. An infrared remote control is provided with this heating device, allowing the user to start the heating process from a safe distance.
Benefits: 5 year return to base warranty, Pre-programmable temperature and timescales minimise temperature dfiferences between the inner and outer ring.
Brand / Quality:
FAG - High Quality
Size:
Up to: 40kg
Technical
Max power 3.6 kVA
Voltage/frequency 230 V 50/60 Hz
Current 16 A
Residual magnetism < 2 A/cm
Weight 26 kg
Length 340mm
Width 240mm
Height 295mm
Clear width 180mm
Clear height 160mm
Ledges (from minimum workpiece bore) 20, 45, 70
Accessory ledges (from minimum workpiece bore) 15, 35, 60
Temperature controller 50 - 240 deg C
Time controller up to 00:00 - 99:59 MM:SS (50 - 400 deg C)
Ramp control 00:05 - 99:59 HH:MM (50 - 240 deg C)
Minimum workpiece bore (with accessory ledge) 15mm
Maximum workpiece mass 40 kg
