SKU: HF.1816.MB

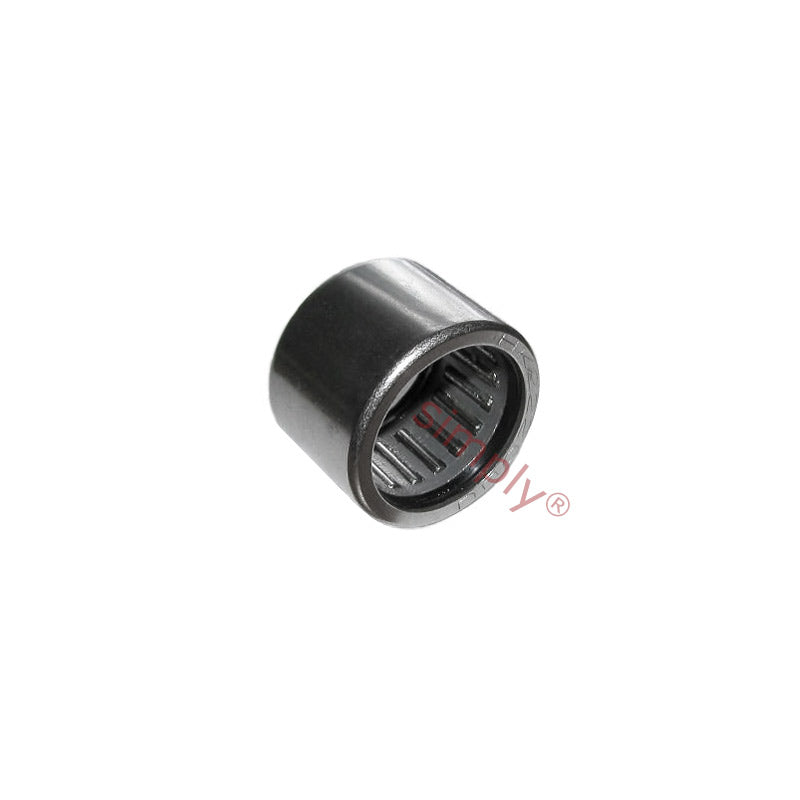

Branded HF1816 Needle Roller Clutch Type One Way Bearing 18x24x16mm
Branded HF1816 Needle Roller Clutch Type One Way Bearing 18x24x16mm
Regular price
$15.23
ex VAT
Regular price
Sale price
$15.23
ex VAT
In stock
Price Break
10+
$13.55
19+
$12.79
29+
$12.64
39+
$12.49
49+
$12.34
74+
$12.18
99+
$11.42
199+
$11.27
249+
$11.12
499+
$10.97
999+
$10.66
Description
Description
Clutch Needle Roller Bearings: Designed to transmit torques in one direction and freewheel in the opposite direction. One-way clutches consist of a thin-walled, drawn outer ring with a series of ramps on the inside diameter, plastic cages, springs and needle rollers. They are supplied pre-greased with lithium soap grease.
They can be used together with needle roller bearings of the HK and BK series and are dimensionally the same and are available for shaft diameters from 6mm to 35mm
Benefits: High indexing accuracy, transmit torques in one direction, work at –10 deg C to +70 deg C
Please note: This bearing has a special none standard bore size
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 18mm
- Outside Diameter:
- 24mm
- Width:
- 16mm
Technical
Technical
| Fw | 18mm |
|---|---|
| D | 24mm |
| C | 16mm |
| Tolerance | 0.3mm |
| r min | 0.3 |
| Torque | 20.5 N m |
| Speed (rotating shaft) | 8500 rpm |
| Speed (rotating outer ring) | 7500 rpm |
| Weight | 14 g |
