SKU: HF1716-EU

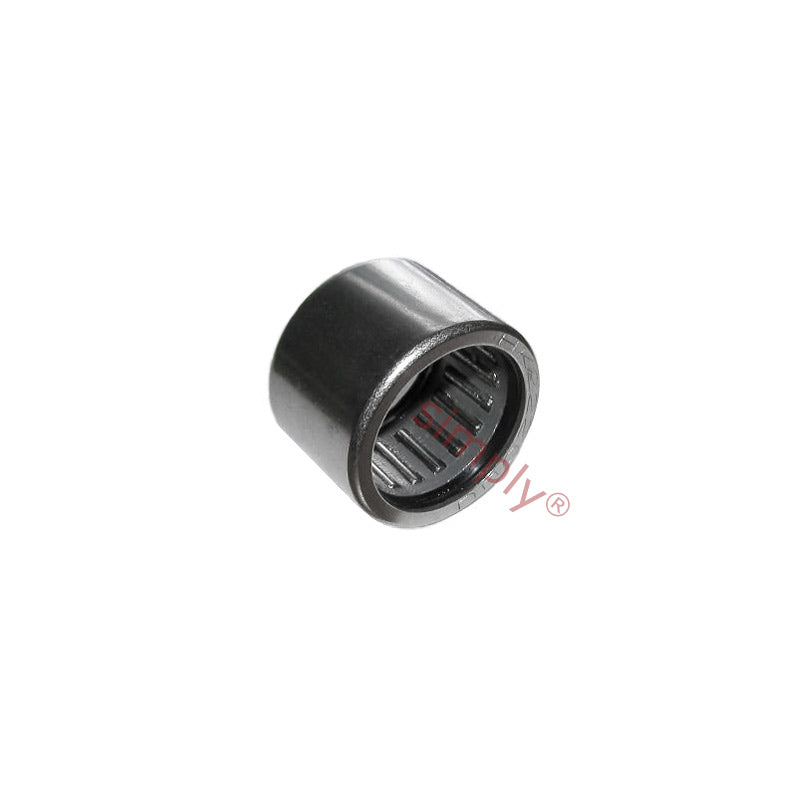

HF1716 Budget Needle Roller Clutch Type One Way Bearing 17x23x16mm
HF1716 Budget Needle Roller Clutch Type One Way Bearing 17x23x16mm
Regular price
$14.76
ex VAT
Regular price
Sale price
$14.76
ex VAT
In stock
Price Break
10+
$13.14
19+
$12.40
29+
$12.25
39+
$12.10
49+
$11.96
74+
$11.81
99+
$11.07
199+
$10.92
249+
$10.77
499+
$10.63
999+
$10.33
Description
Description
Budget Clutch Needle Roller Bearings: Designed to transmit torques in one direction and freewheel in the opposite direction. One-way clutches consist of a thin-walled, drawn outer ring with a series of ramps on the inside diameter, plastic cages, springs and needle rollers. They are supplied pre-greased with lithium soap grease.
They can be used together with needle roller bearings of the HK and BK series and are dimensionally the same and are available for shaft diameters from 6mm to 35mm.
Benefits: High indexing accuracy, transmit torques in one direction, work at –10 deg C to +70 deg C
Please note: This bearing will turn in one direction only
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 23mm
- Width:
- 16mm
Technical
Technical
| Fw | 17mm |
|---|---|
| D | 23mm |
| C | 16mm (Tolerance: 0/-0.3) |
| r min | 0.3mm |
| Permissable torque | 20.5 Nm |
| Speed (rotating shaft) | 8500 rpm |
| Speed (rotating outer ring) | 7500 rpm |
| Weight | 14 g |
