• HFL1426 Budget Needle Roller Clutch Type One Way Bearing 14x20x26mm
1 1

SKU: HFL.1426.EU

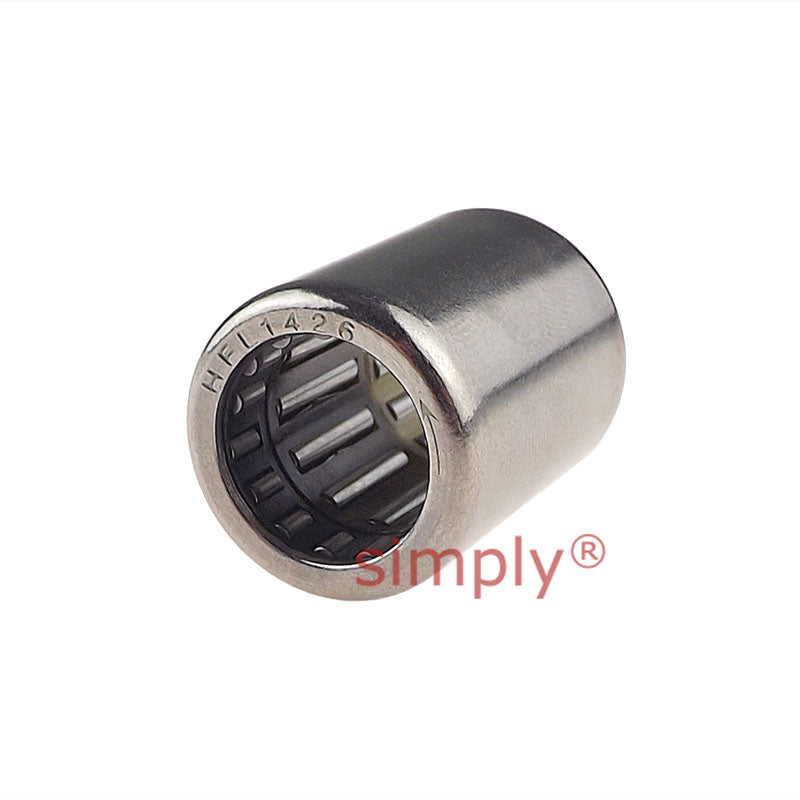

HFL1426 Budget Needle Roller Clutch Type One Way Bearing 14x20x26mm

HFL1426 Budget Needle Roller Clutch Type One Way Bearing 14x20x26mm
$9.30 ex VAT
$9.30 ex VAT
Sale Sold out

In stock

Price Break
10+ $8.28
19+ $7.81
29+ $7.72
39+ $7.63
49+ $7.53
74+ $7.44
99+ $6.98
199+ $6.88
249+ $6.79
499+ $6.70
999+ $6.51
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Budget Metric Needle Roller Clutch Bearings: Designed to transmit torques in one direction and freewheel in the opposite direction. One-way clutches consist of a thin-walled, drawn outer ring with a series of ramps on the inside diameter, plastic cages, springs and needle rollers. They are supplied pre-greased with lithium soap grease.
They can be used together with needle roller bearings of the BA and BHA series and are dimensionally the same and are available for shaft diameters from 1/4 inch to 1 inch
Benefits: High indexing accuracy, transmit torques in one direction, work at –10 deg C to +70 deg C

Please note: This bearing will turn in one direction only

Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
14mm
Outside Diameter:
20mm
Width:
26mm
Technical
Fw 14mm
D 20mm
C 26mm (Tolerance: 0/-0.3)
r min 0.3mm
Permissable torque 17.3 Nm
Speed (rotating shaft) 9500 rpm
Speed (rotating outer ring) 8000 rpm
Maximum permissable radial load 6800 N
Limiting load 7800 N/min
Weight 20 g
